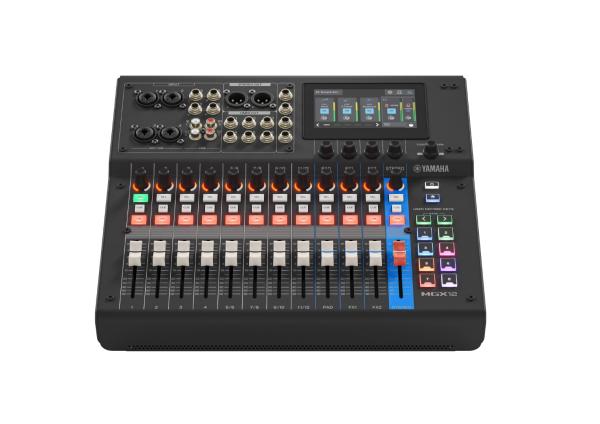

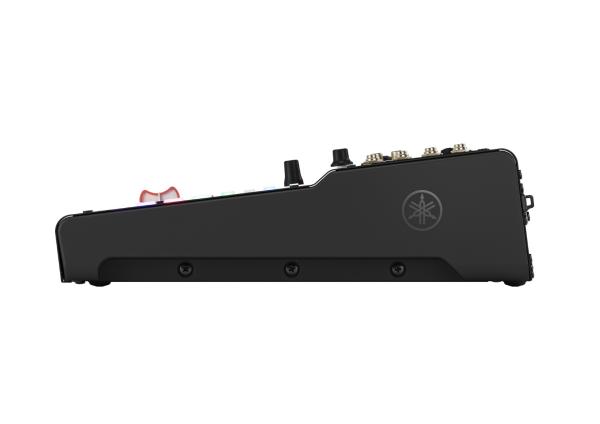

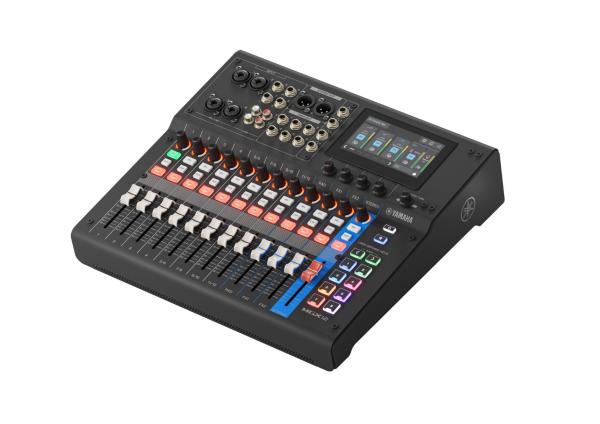

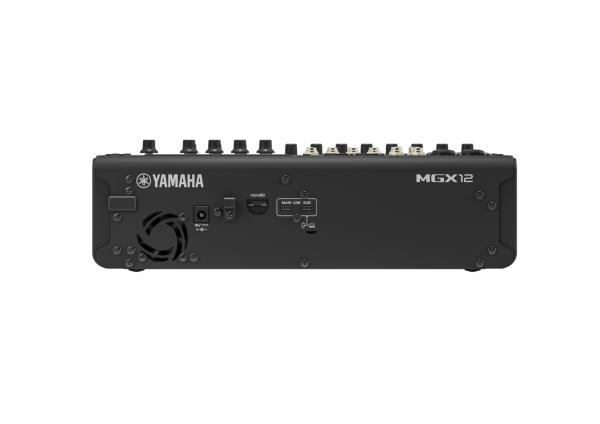

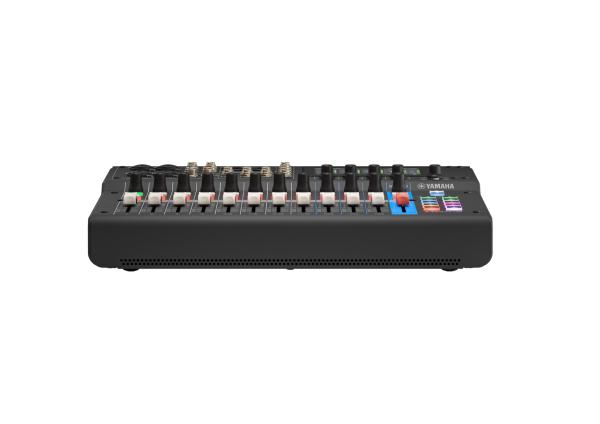

Yamaha MGX12 Black
The Yamaha MGX12 Black embodies the digital evolution of the renowned MG series, the benchmark for compact mixing consoles. Designed to offer a perfect balance between professional sound quality, flexibility and ease of use, it is equally suited to live sound, streaming/podcast and home studio applications, as well as fixed installations.
Equipped with high-end mic preamps offering a wide gain range and extremely low distortion, the MGX12 reproduces every detail with remarkable precision. Its color touchscreen, physical faders and customizable controls guarantee fast, intuitive control, even in demanding situations.
Thanks to its integrated processing tools (EQ, compressor, gate, reverb, amp simulator, voice changer), assignable Sound Pad and Bluetooth connectivity, the MGX12 Black is a modern, powerful and versatile solution for today's creators and technicians.
4 Combo Mic / Line inputs
4 mono channels
4 stereo channels
1 dedicated Sound Pad channel
2 integrated effects channels
Bus & Mix
Digital mixing architecture
8 MIX busses
1 STEREO bus
60 mm faders for precise control
Audio quality
Microphone preamps with up to 86 dB gain
Ultra-low distortion
125 dB dynamic range on stereo output
Processing & Features
Gate, Compressor, EQ
Reverb, Amp Simulator, Voice Changer
Auto Gain and Clip Safe
Total FX (Ducker, multiband compressor)
Delay function for lip-synchronization
Scene Recall and Simple mode
Connectivity & Recording
USB audio interface
Record/playback up to 18 tracks
Multitrack recording on microSD card
Bluetooth audio input
Dual USB ports (MAIN / SUB)
Control & Ergonomics
Color LCD touchscreen
4 customizable rotary encoders
Touch & Turn control
8 assignable pads (effects, samples, shortcuts)
Format & Design
Finish: Black
Dimensions: 335 × 96 × 319 mm
Weight: approx. 3.9 kg
Ref. Euroguitar : 120823
