Ssl REVIVAL 4000
The soul of legendary SSL 4000 consoles in a rack format.
Designed to deliver all the warmth, punch, and musicality of the iconic SSL consoles from the 1980s, this high-performance analog channel strip is a faithful tribute to the original SSL 4000 B & E series circuits, found in some of the world’s most renowned studios.
Created for engineers, producers, and artists seeking true analog character, this unit offers comprehensive and flexible signal processing, from preamp to routing, including dynamics and EQ.
An iconic preamp, enhanced by Jensen.
At the heart of the strip lies a mic preamp derived from the SSL 4000 E series, equipped with a Jensen JT-115K-E transformer, known for its ability to deliver clarity, warmth, and natural harmonic saturation. It’s a bold and musical front-end, offering subtle color that perfectly complements both modern and vintage productions.
Classic 4000 series De-Esser and Dynamics: tonal control with character.
Inspired by the SSL 4000 B, the onboard De-Esser provides precise control over sibilant frequencies without compromising the clarity or texture of the vocal performance.
The complete dynamics section from the 4000 E features a musical compressor/limiter and an effective expander/gate, with intuitive controls to shape transients and give presence to any source in the mix.
A legendary 4-band EQ.
A cornerstone of the SSL sound, the 4-band equalizer in this strip combines the aggressive punch of the Black Knob version with the smooth musicality of the Brown Knob, offering maximum flexibility whether you’re boosting a snare, carving out a synth, or adding air to a vocal.
High-pass and low-pass filters round out the section, providing surgical removal of unwanted frequencies.
A modern workflow for today’s studios.
Thanks to its flexible routing and streamlined layout, this channel strip integrates seamlessly into any studio setup. Whether you’re tracking, mixing, or even mastering, it delivers a cohesive, inspiring analog signal path that’s both musical and remarkably effective.
Experience the essence of classic SSL consoles – in a compact strip with a massive sound.
Microphone preamp based on the SSL 4000 E circuit
Input transformer: Jensen JT-115K-E
Smooth analog gain with natural harmonic coloration
Balanced XLR mic input
Vocal Processing
De-Esser based on the SSL 4000 B circuitry
Precise control of sibilant frequencies
Ideal for vocals and high-frequency instruments
Dynamics Section
Derived from the SSL 4000 E series
Compressor/Limiter
Controls: Threshold, Ratio, Attack, Release
Optional auto-release function (depending on version)
Expander/Gate
Controls unwanted noise or mic bleed
Adjustable for subtle or aggressive gating
Equalizer
4-band parametric EQ
Selectable EQ curves:
Brown Knob: Smooth, musical response
Black Knob: More punchy and aggressive
Low, low-mid, high-mid, and high frequency bands
Variable Q on mid bands
Built-in high-pass and low-pass filters
Adjustable cutoff frequencies

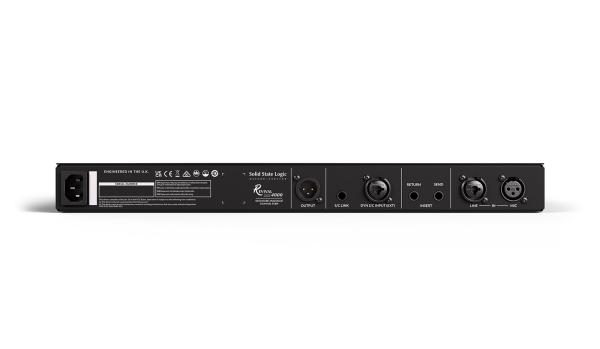

Routing & Features
Flexible signal routing:
Pre or post EQ/Dynamics
Insert point (depending on final design)
Analog VU meter (if available on model)
Line and/or instrument input (depending on version)
Balanced line output
Rackmount format: 19” – 2U (or as specified)
