Soyuz microphones Lakeside Preamp
The Soyuz Lakeside is a Class A, single-channel microphone and instrument preamplifier designed to add character, depth, and harmonic richness to recordings.

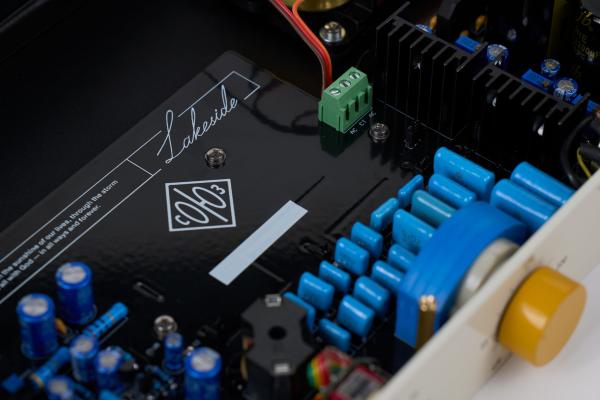

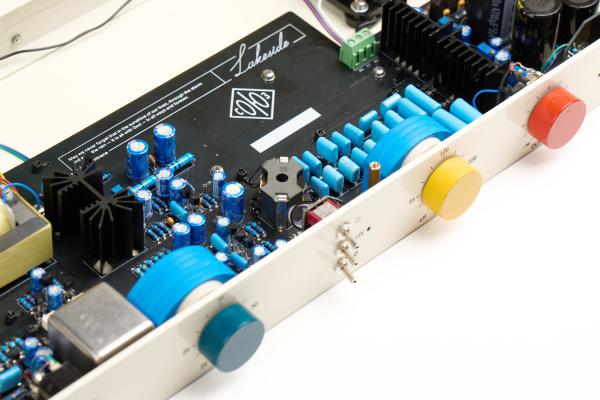

Its fully discrete circuitry and custom-wound input and output transformers allow it to combine excellent headroom with distinctive musical coloration. It can deliver a clean, detailed signal or be driven harder to achieve dynamic saturation and more pronounced harmonics.

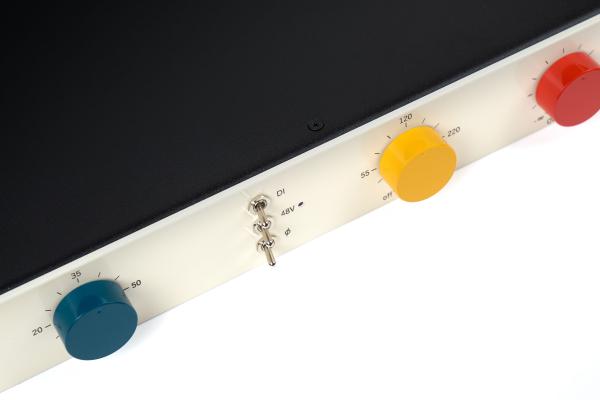

The Lakeside offers up to 60 dB of gain, adjustable in 5 dB steps, along with an output level control that allows for precise adjustment of the coloration generated by the circuit.
Its high-pass filter utilizes an inductor-based circuit and offers ten cutoff frequencies ranging from 40 to 330 Hz. With an 18 dB/octave slope, it enables precise control of the low-end spectrum while maintaining a musical response.
A high-impedance DI instrument input (1/4" jack) is built directly into the front panel, allowing for the connection of guitars, basses, synthesizers, drum machines, and other instrument-level sources.
The Lakeside also features switchable +48V phantom power and polarity reversal, making it easy to integrate into a professional recording signal chain.
Highly versatile, it is suitable for vocals, guitars, drums, and both acoustic and electronic instruments. It can also be used to run tracks, stems, or even a full mix through its circuitry to add warmth, character, and cohesion. Key Features
Single-channel microphone and instrument preamplifier

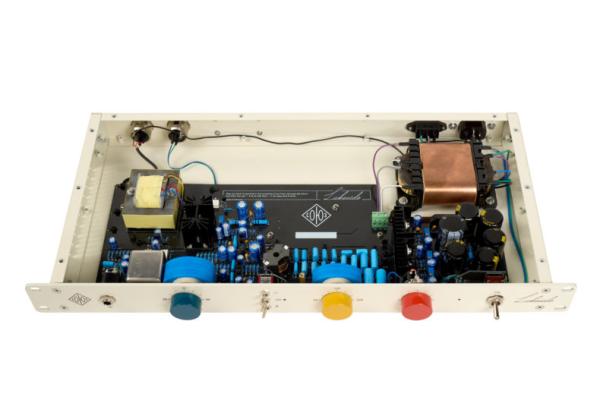

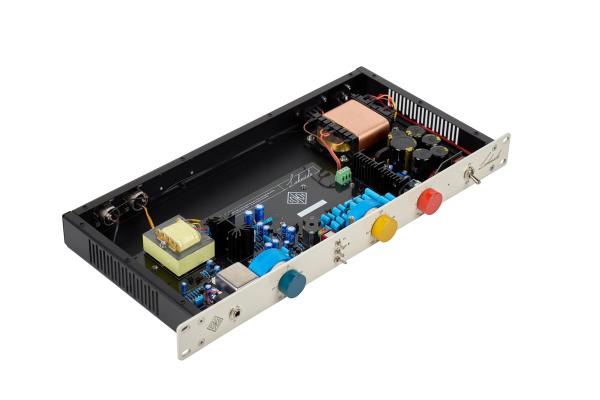

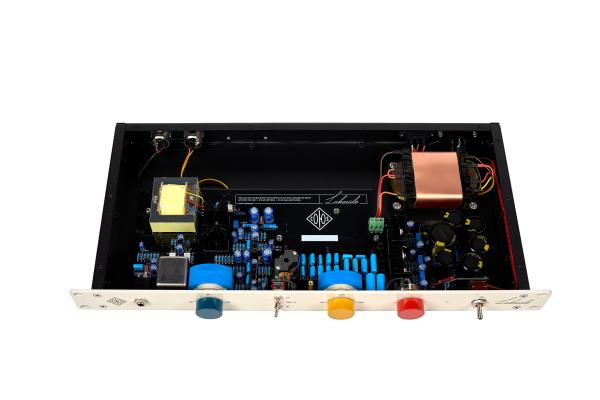

Fully discrete Class A circuitry
Through-hole electronic construction
Custom-wound input and output transformers
Adjustable gain from 10 to 60 dB
5 dB gain steps
Independent output level control
Inductor-based high-pass filter
10 cutoff frequencies ranging from 40 to 330 Hz
Front-panel high-impedance DI input
Switchable +48V phantom power
Polarity reversal
Sound ranging from clean reproduction to pronounced harmonic saturation
Suitable for microphones, guitars, bass, synthesizers, and drum machines
Suitable for re-amping tracks, stems, and full mixes
19-inch / 1U rack format
Number of channels: 1
Circuitry: Fully discrete Class A
Electronic construction: Through-hole components
Transformers: Custom-wound input and output transformers
Gain: 10 to 60 dB
Gain adjustment: 5 dB steps
Output control: Adjustable output level
Microphone input: XLR
Instrument / DI input: Front-panel 1/4" jack
Output: Balanced XLR
Microphone input impedance: 1.2 kOhm
DI input impedance: Greater than 1 MOhm
Output impedance: Less than 80 Ohms
Phantom power: Switchable +48 V
Polarity reversal: Yes
Frequency response: 20 Hz – 20 kHz (±0.5 dB, 40 dB gain, 600 Ohm load)
Extended frequency response: 8 Hz – 40 kHz (±5 dB, 40 dB gain, 600 Ohm load)
Equivalent Input Noise (EIN): -120 dB (40 dB gain, 600 Ohm load)
THD+N: Less than 0.02% (40 dB gain, 600 Ohm load, +18 dBu output)
Maximum output level: +27 dBu at 0.2% THD
Maximum output level: +31 dBu at 1.5% THD
High-pass filter: 18 dB/octave
High-pass filter frequencies: 40 / 55 / 70 / 90 / 120 / 150 / 180 / 220 / 270 / 330 Hz
Format: 19-inch rack / 1U
Dimensions: 483 × 216 × 44 mm
Weight: 5.9 kg
