Nux NAI-24
A Tribute to Legends
Using the 76PRE FET compressor circuit, it employs optimized circuits to deliver perfect sound quality. The interface features multiple preset modes via digital control for various applications.
The input channel uses wide-dynamic Class A transistors, providing a maximum gain of 71 dB.
Each input channel features a built-in boost mode and three different compression modes.
Boost Mode: Provides an additional 8 dB of gain to the overall preamp, bringing the total preamp gain to 71 dB.
Vocal Compression Mode: Designed with moderate attack and release characteristics based on vocal performance, delivering a smooth sound.
Guitar Compression Mode: Fast response and smooth release specifically calibrated for guitar/bass, delivering a balanced and consistent volume. Live Streaming Compression Mode: This mode offers the fastest compression characteristics, ensuring signal integrity and clarity during live broadcasts.
Professional AD/DA Conversion for Precision Audio
The NAI-24 interface is equipped with high-quality professional AD/DA decoding chips from renowned manufacturer AKM (Asahi Kasei Microdevices).
Audio Transformers: A Quality Choice
The NAI-24 features studio-grade audio transformers on the main output (1L/2R), providing warm sonic characteristics and ensuring electrical isolation to prevent interference from ground loops. (Note: Even when connecting unbalanced outputs to 1L/2R, the balanced output signal strength is always maintained.)
Simple and Easy to Use

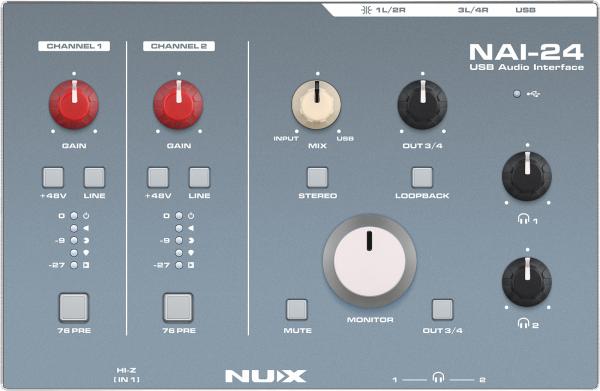

The NAI-24 is an easy-to-use 2-in, 4-out USB audio interface with 48V phantom power and LINE IN switching buttons. The interface features HI-Z inputs, two independently adjustable headphone jacks, soft/hard monitoring, stereo mode, and loopback.
With an ultra-low latency of 3.17 ms at 192 kHz and a 32-sample buffer, the NAI-24 meets professional needs.
By holding down the (OUT 3/4) button, you can switch the headphone output 2 to monitor channels 3/4. (For example, when playing backing tracks during a performance, send the metronome track separately to the drummer.)
Only one pair? No, you need two.
A/B Mode: In this mode, you can connect active monitor speakers to the outputs (1L/2R and 3L/4R) simultaneously and switch between them with one click by pressing the (OUT 3/4) button.
Let me hear it
Record mode: In this mode, when using the master channel (1L/2R), pressing the (OUT 3/4) button allows you to adjust the sound sent to channels 3/4 with one click. (For example, the sound engineer needs to temporarily adjust the tracks sent to the musicians who are currently recording.)
Add external effects to existing recordings
In record mode, easily connect various external effects modules for a new take.
Getting started
The interface includes licensed professional recording software CUBASE 13 LE.
- Phantom power: 48V, Yes
- Category: Audio interface
- Color: Blue
- Dimensions (mm): 194x128x67
- Form factor: Desktop
- MIDI interface: No
- Software supplied: Cubase LE
- Number of inputs: 2
- Number of analog inputs: 2
- Number of outputs: 4
- Number of instrument inputs: 1
- Number of microphone inputs: 2
- Weight (kg): 0.72 kg
- Maximum resolution: 32-bit
- Additional specifications:
- 2-in/4-out USB audio interface - 32-bit/192 kHz
- Class A transistor preamplifier offering a wide dynamic range and ultra-high resolution
- 76PRE type FET compression circuit with multiple preset modes for various applications
- Studio-quality audio transformer on the outputs 1L/2R main outputs for detailed sound reproduction
- Additional 3L/4R outputs for auxiliary output, enhancing versatility in different configurations
- Two high-performance headphone amplifiers with routable channels for a customized mix
- USB powered, no external power supply required
- 48V phantom power switchable per channel.
- Ultra-low latency direct monitoring for real-time performance
- Stable and reliable signal transmission thanks to high-quality XLR and 6.35mm connectors
MIC IN
Dynamic range: 114dB (A-weighted)
Frequency response: 20-20,000Hz ± 0.1dB
THD+N: 0.002% @ -1dBFS (at minimum gain)
EIN: -126dB (A-weighted)
Maximum input level: 6dBu (at minimum gain)
Gain range: 5.4-63dB
Input impedance: 2.4kΩ
LINE IN
Dynamic range: 114dB (A-weighted)
Frequency response: 20-20,000Hz ± 0.12dB
THD+N: 0.003% @ -1dBFS (at minimum gain)
Maximum input level: 26dBu (at minimum gain)
Gain range: -12.6-45dB
Input impedance: 21kΩ
HI-Z
Nominal input level: -10dBu
Input impedance: 1MΩ
1L/2R
Dynamic range: 112dB (balanced, 600Ω, A-weighted)
Frequency response: 20-20,000Hz ± 0.5dB
Maximum output level: +12.4dBu (balanced, 0dBFS)
THD+N: 0.0015% @ -1dBFS
Output impedance: 580Ω
3L/4R
Dynamic range: 112dB (balanced, 200kΩ, A-weighted)
Frequency Response: 20-20,000Hz ± 0.1dB
THD+N: 0.001% @ -1dBFS
Maximum Output Level: +18.4dBu (balanced, 0dBFS)
Output Impedance: 240Ω
PHONES OUTPUT
Dynamic Range: 104dB (A-weighted)
Frequency Response: 20-20,000Hz ± 0.25dB
THD+N: 0.005% @ -5dBFS
Output Power: 30mW @ 32Ω
