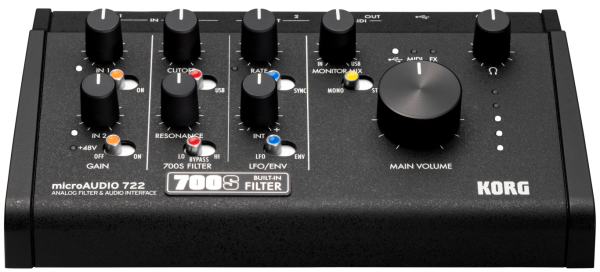

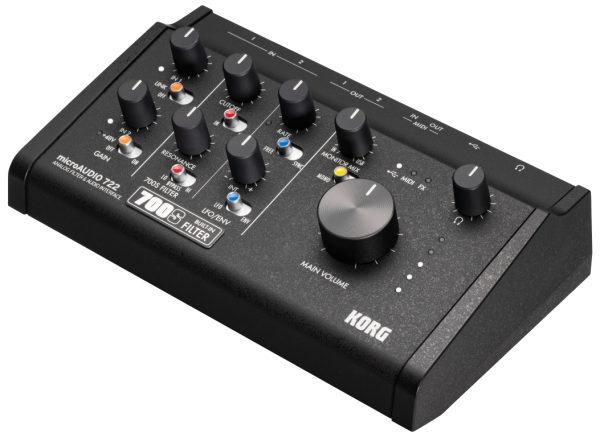

Korg Microaudio 722
The KORG microAUDIO 722 pushes the boundaries of the traditional audio interface by incorporating the legendary analog filter from the miniKORG 700S. More than just a recording tool, it becomes a true instrument of sound creation, bridging the gap between digital and analog.

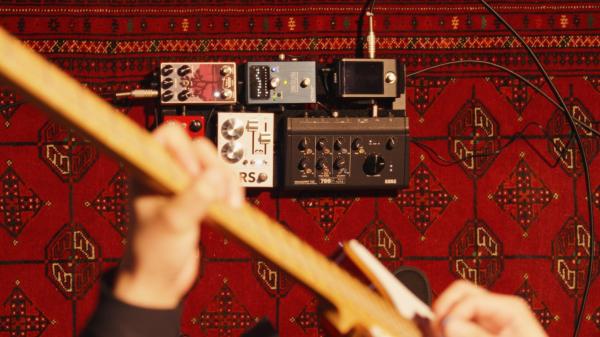

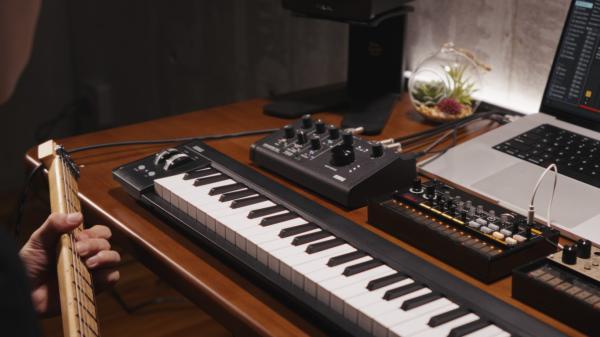

This iconic filter brings warmth, character, and expressiveness, allowing you to sculpt sound in ways that digital alone cannot. Usable as a standalone filter or integrated into a DAW, it transforms guitars, basses, synthesizers, or digital sources into rich, vibrant textures.
With low-pass, high-pass, and bypass modes, internal and external signal processing, and MIDI In/Out connectivity, the microAUDIO 722 is ideal for producers, sound designers, and hybrid musicians seeking new creative possibilities.
Combined with the Filter Ark plug-in, it offers a complete ecosystem where hardware and software work together seamlessly, for deep, musical, and inspiring sound design.

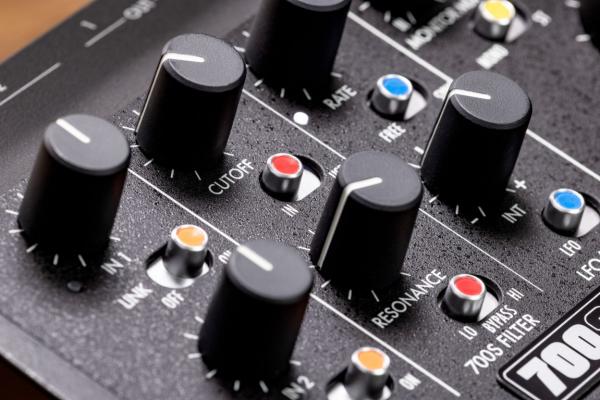

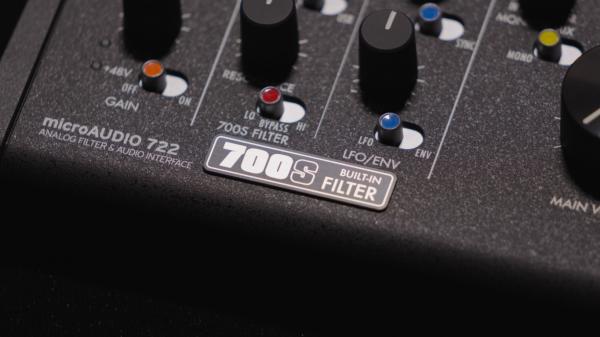

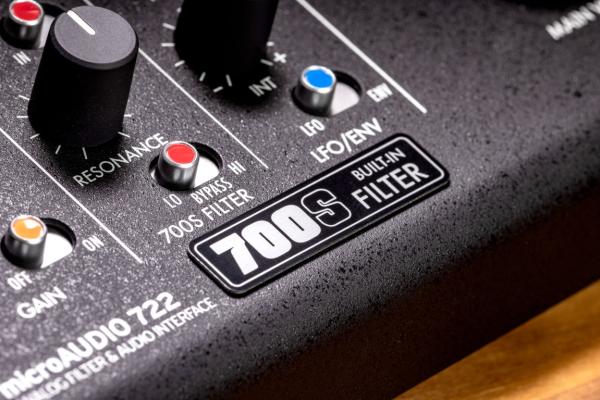

miniKORG 700S Analog Filter
Modes: Low-pass / High-pass / Bypass
Applications:
On analog inputs
On audio from a PC
Can be used as an external or standalone effect
Automation and control via MIDI
MIDI
MIDI IN
MIDI OUT (3.5 mm TRS jack)

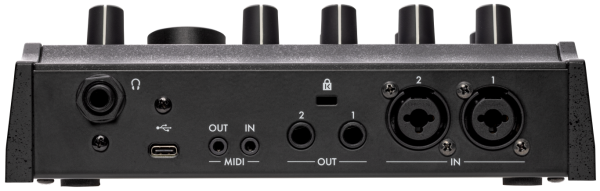

Connections
2 × XLR / 6.35 mm TRS combo inputs
2 × 6.35 mm TRS jack outputs
1 × 6.35 mm headphone jack output
1 × USB-C port
MIDI In / Out (exclusive to microAUDIO 722)
General Specifications
Simultaneous Inputs/Outputs: 2 × 2
Mic Preamps: 2
A/D Resolution: 24-bit / 192 kHz
48V Phantom Power: Yes
Loopback Mode: Yes
Power supply: USB-C (USB bus)
Dimensions & weight
Dimensions: 207 × 128 × 68 mm
Weight: 553 g
Included software
Filter Ark (exclusive, core of the sound design)
KORG Software Bundle
Ableton Live Lite
iZotope Ozone Elements
Box contents
USB cable
Quick Start Guide
Ref. Euroguitar : 120854
