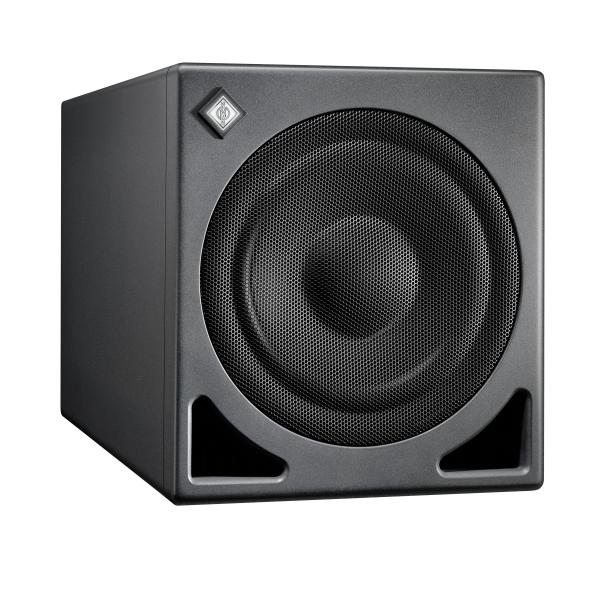

Neumann KH 810 II AES67
The KH 810 II AES67 features the same acoustic design and performance as the KH 805 II, but brings multichannel bass management (up to 7.1.4), making it ideal for surround and immersive production environments.
The KH 810 II is ideally suited to medium-sized studio monitors in the KH range, such as the KH 150 and KH 310, and/or for upgrading existing setups to surround and immersive environments.
Twelve AES67 input channels can be reproduced by the subwoofer itself, and up to 11 studio monitors connected to its analog or digital AES3 (BNC) outputs. The AES67 versions integrate your entire stereo, surround or immersive speaker configuration into your AoIP infrastructure.
AES67 subwoofer variants offer integrated, redundant AES67 audio network ports, fully compliant with broadcast standards such as ST 2110, ST 2022-7 and RAVENNA. AES67 subwoofers are also compatible with AES67 network streams generated by DANTE®.
Max SPL @ 1 m : 109 dB
Frequency response (± 6 dB) : 16 … 750 Hz
Dimensions (H x W x D) : 368 × 330 × 645 mm

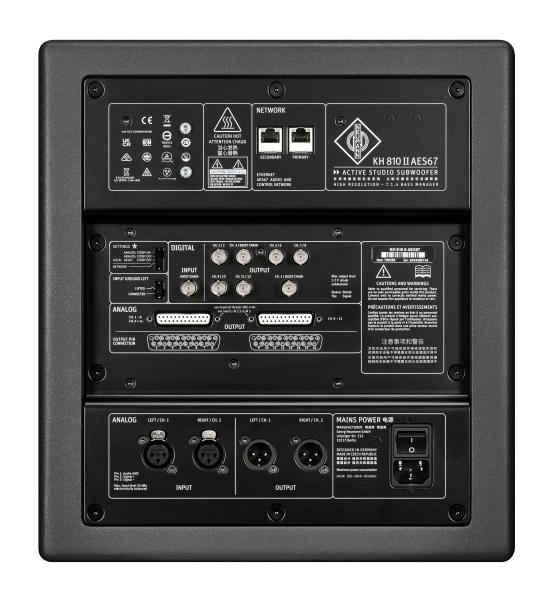

Analog I/O :
In : 2x XLR, 2x SUB-D25
Out : 2x XLR, 2x SUB-D25
Digital I/O : AES3 (BNC) : 7x Monitor Out, Daisy chain : In/Out
AES67 version : 2x RJ 45, AoIP redundancy, NMOS, ST 2110, no SUB-D In
Ref. Euroguitar : 118524
