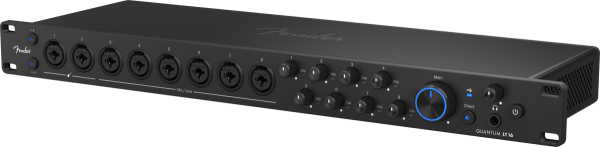

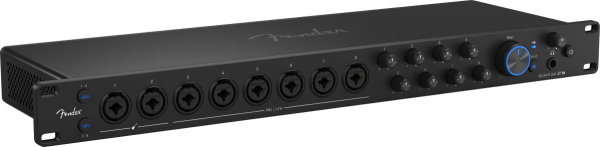

Fender Quantum LT 16 USB-C
The Fender Quantum LT 16 is a professional USB-C audio interface designed for demanding studios, multitrack recording, and hybrid hardware/software setups. A true flagship of the LT series, it offers extensive connectivity and high-level audio performance, suitable for both bands and advanced producers.
Equipped with eight MAX-HD mic preamps with up to 75 dB of gain, it guarantees precise, detailed, and noise-free sound capture, even with demanding microphones. Its wide range of inputs allows for simultaneous recording of multiple sources: drums, a full band, or a complex studio setup.
Thanks to its ultra-low latency drivers and advanced features such as standalone mode and loopback, it integrates seamlessly into modern workflows, whether for recording, streaming, or music production.
Key Features
16-in/8-out USB-C audio interface
8 MAX-HD mic preamps with up to 75 dB of gain
14 line inputs for external gear integration
2 dedicated instrument inputs (Hi-Z)
High-quality 24-bit/192 kHz audio conversion
Ultra-low latency drivers (Mac/Windows)
Standalone Mixer and Mic Pre Mode
Loopback function for streaming and content creation
Balanced TRS outputs + powerful headphone amp
Built-in 5-pin MIDI In/Out
DC-coupled outputs for modular synthesizers

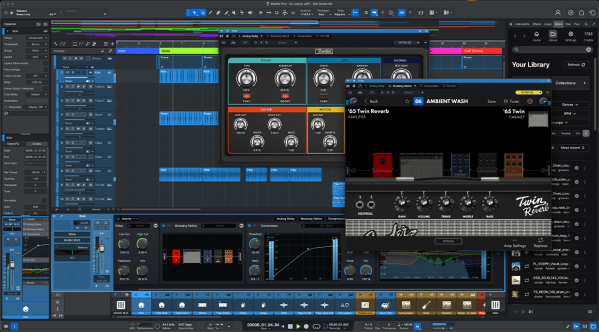

Fender Studio Pro software included
Resolution: 24-bit / up to 192 kHz

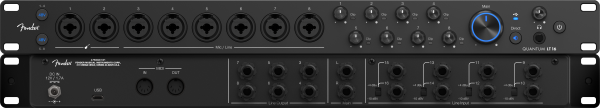

Inputs:
8 x XLR/TRS combo (mic/line)
6 x front panel line inputs
8 x rear panel TRS line inputs
2 x Hi-Z instrument inputs
Outputs:
Balanced TRS main outputs
Additional line outputs
Headphone output
Mic gain: Up to 75 dB
Dynamic range: Up to 115 dB
THD+N: ~0.001%
Phantom power: +48 V
MIDI: 5-pin DIN In/Out
Connectivity: USB-C
Dimensions: 1U (19") rackmount
Weight: Approx. 2.2 kg
Ref. Euroguitar : 122541
