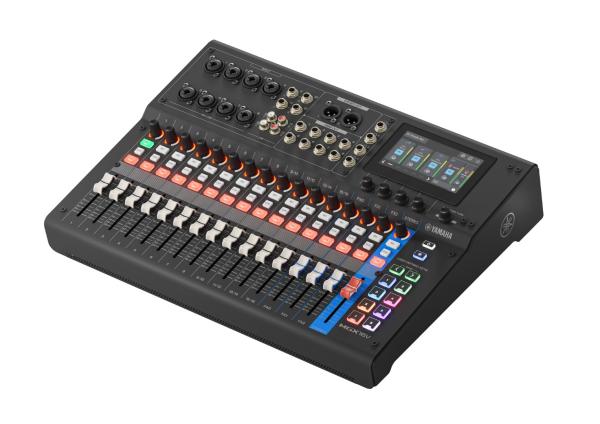

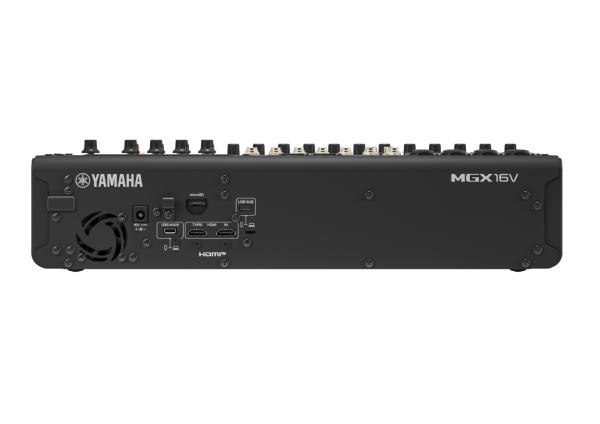

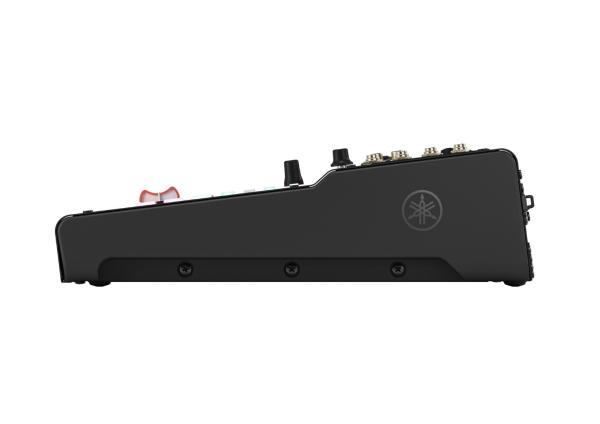

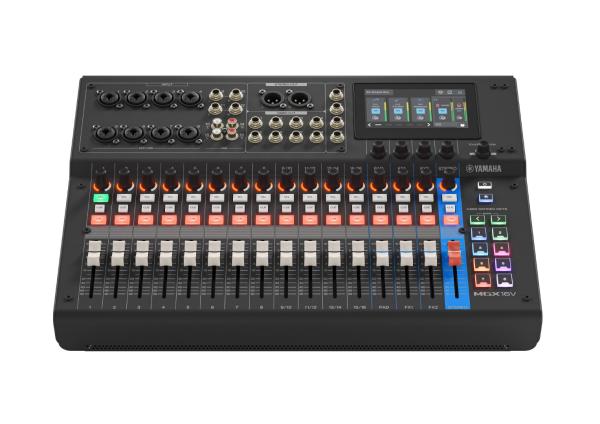

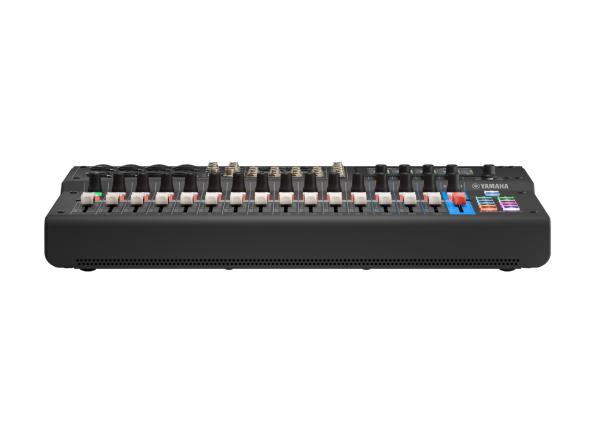

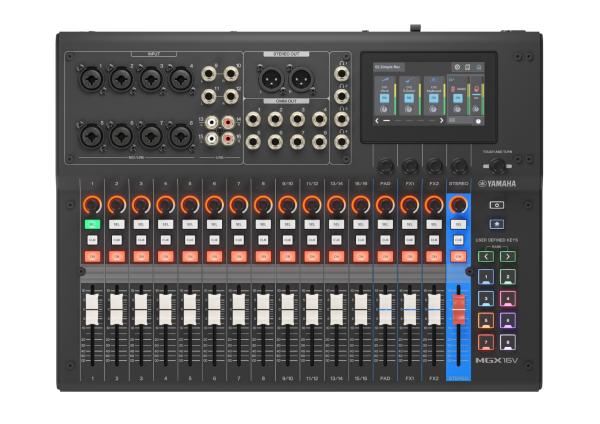

Yamaha MGX16V Black
The Yamaha MGX16V is the most advanced audio & video version of the MGX series. Designed for demanding professional environments, it is a central solution for live performances, audiovisual installations, streaming, podcasts, studios and video productions.
Based on the proven heritage of the MG series, the MGX16V incorporates high-end mic preamps offering a wide gain range, minimal distortion and highly accurate sound reproduction. Its advanced digital architecture, combined with a color touchscreen, physical faders and customizable controls, ensures fast, fluid and intuitive control.
The V version stands out for its HDMI-USB A/V interface, perfectly suited to modern video workflows. Combined with powerful integrated audio processing, assignable Sound Pad and Bluetooth connectivity, the MGX16V becomes a true all-in-one audio-video hub.
8 Combo Mic / Line inputs
8 mono channels
4 stereo channels
1 dedicated Sound Pad channel
2 integrated effects channels
Bus & Mix
Digital mixing console
8 MIX busses
1 STEREO bus
60 mm faders for precise, comfortable control
Audio quality
Microphone preamps with up to 86 dB gain
Ultra-low distortion
125 dB dynamic range on stereo output
Processing & Features
Gate, Compressor, EQ
Reverb, Amp Simulator, Voice Changer
Auto Gain and Clip Safe
Total FX: Ducker and multiband compressor
Delay function for lip-synchronization
Scene Recall
Simple mode for easier handling
Connectivity & Recording
HDMI-USB audio & video interface
Recording/playback of up to 22 tracks
Multi-track recording on microSD card
Bluetooth audio input
Dual USB ports (MAIN / SUB)
Control & Ergonomics
Color LCD touchscreen
4 customizable rotary encoders
Touch & Turn control
8 assignable pads (effects, samples, shortcuts, controls)
Format & Design
Finish: Black
Dimensions: 419 × 96 × 319 mm
Weight: approx. 4.9 kg
Ref. Euroguitar : 120829
