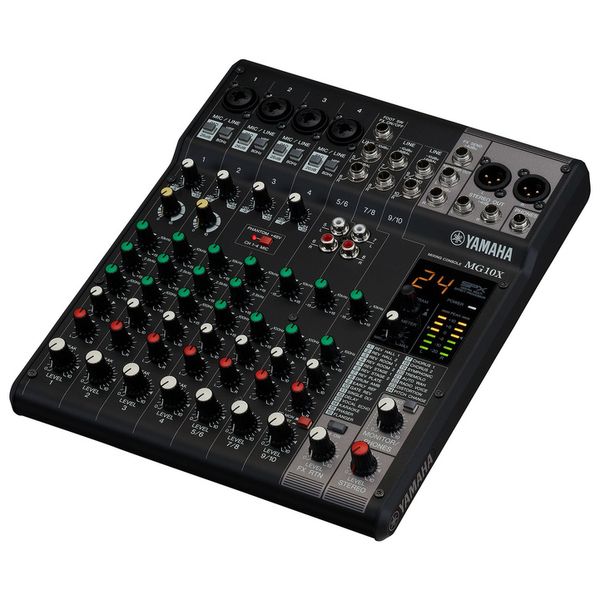

Yamaha MG10X
The MG10X is a 10-channel mixing console from Yamaha. The MG-X's SPX effects combine perfectly with the D-PRE discrete mic preamplifiers and custom-built MG01 operational amplifiers to produce stunning sound quality, easily adaptable to any space. What's more, the one-button compressor gives users instant access to optimized compression settings for speech, vocals and instruments with a single rotary control. All three MG-X models feature a robust metal chassis and can be installed quickly and easily wherever required. The MG10X can be mounted on a microphone stand with the optional BMS-10A adapter.
MG10X highlights
MG10X Key Features
SPX effects and an innovative compressor
Advanced installation
Expert opinions
"D-PRE" microphone preamplifier with inverted Darlington circuit (XLR/jack)
+48V phantom power
Channels 1-2 with built-in compressor
3-band equalizer
High pass filter and +26 dB pad switch
3 stereo inputs (jack) with 2-band equalizer
XLR main outputs
Group bus output
1 auxiliary channel for all channels
1 effects unit with 24 different effects
Dimensions (L x H x D): 244 x 71 x 294 mm
Weight: 2.1 kg
