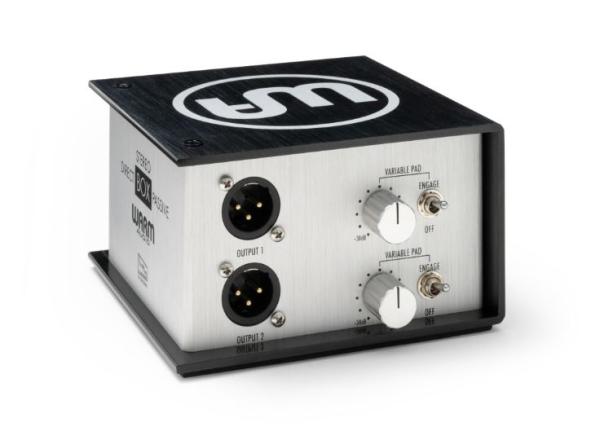

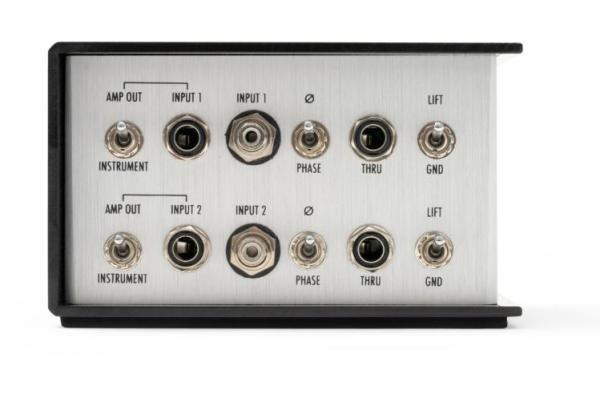

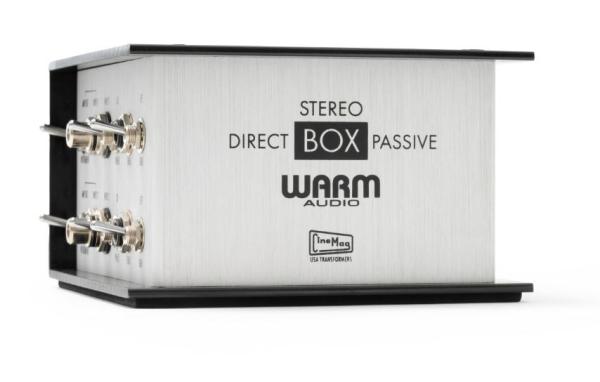

Warm audio WA-DI-P2 Passive Stereo DI Box
SOBRE EL PRODUCTO
Warm Audio stereo DIs are equipped with high-end CineMag USA transformers. They preserve the sonic character of your stereo keyboards, synthesizers, guitar processors and pedalboards, while delivering a clean balanced signal to mixing consoles, audio interfaces and PA systems.
An attenuator (-3 to -30 dB) lets you adjust signal level, while a ground/lift switch helps eliminate ground loops.
The passive Stereo DI offers transformer-isolated signal conversion, perfectly suited to high-level sources such as drum machines, playback systems or modelers feeding a FOH or recording system.
CARACTERÍSTICAS
- Custom-wound CineMag USA transformer-balanced stereo direct box (active or passive)
- Balanced output: 600 ohms, mic level without degradation
- High-quality Class A components with gold-plated PCB tracks
- Ideal for connecting your instrument directly to a mic preamp
- Input impedance: 1 MΩ
- Frequency response (active/passive): 10 Hz to 100 kHz ± 0.5 dB
- THD: 0.01% from 20 Hz to 50 Hz, < 0.004% from 50 Hz to 20 kHz (< 0.003% active)
- Rugged aluminum construction
- Pad: variable from -3 dB to -30 dB
- Dimensions: 127 × 140 × 73 mm
- Ref. Euroguitar : 123111
