Rcf SUB 702-AS MK3
The SUB 702-AS MK3 is a compact, high-performance active subwoofer designed for live applications, DJs and small to medium-sized venues.
It features a 12? driver in a bass-reflex enclosure, combined with high-power Class D digital amplification. Thanks to Bass Motion Control technology, it offers optimized woofer excursion management for deep, clear and dynamic bass, while maintaining excellent reliability and compactness.

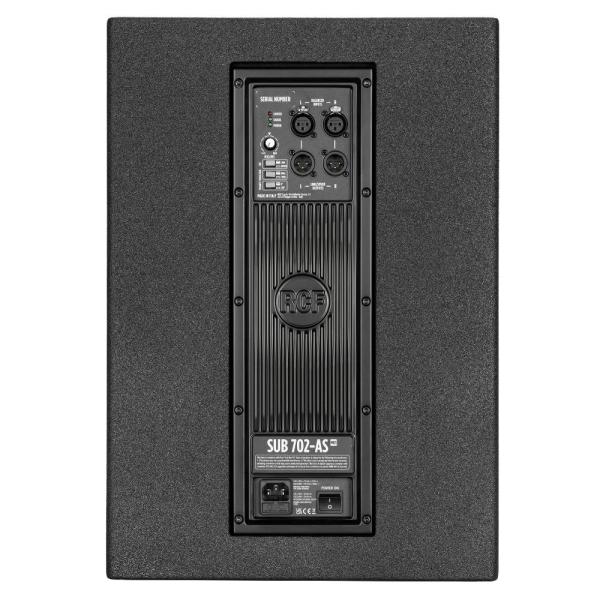

The rear panel contains all the essential controls: volume, equalizer, polarity inversion and crossover frequency selection, making it easy to integrate with 8? or 10? speaker satellites or any other lightweight front panel.
The sturdy plywood case, ergonomic carrying handles and M20 base for stand/pole mounting make this a reliable and portable tool.
Frequency Response: 40 Hz – 120 Hz
Maximum SPL: 129 dB
Speaker: 1 × 12", 2.5" voice coil
Enclosure Type: Bass-reflex
Amplification / Electronics
Amplification: Class D
Power: 1400 W Peak
Integrated DSP:
Bass Motion Control Technology
Soft Limiter
Thermal and RMS Protection
Crossover Frequency Selection
EQ and Phase Inversion Options
Connectivity
Inputs: 2 × XLR (L/R, balanced/unbalanced)
Outputs: 2 × XLR Link
Controls:
Level
EQ
Phase
Crossover
Construction / Mechanics
Material: Birch plywood
Finish Durable polyurethane coating

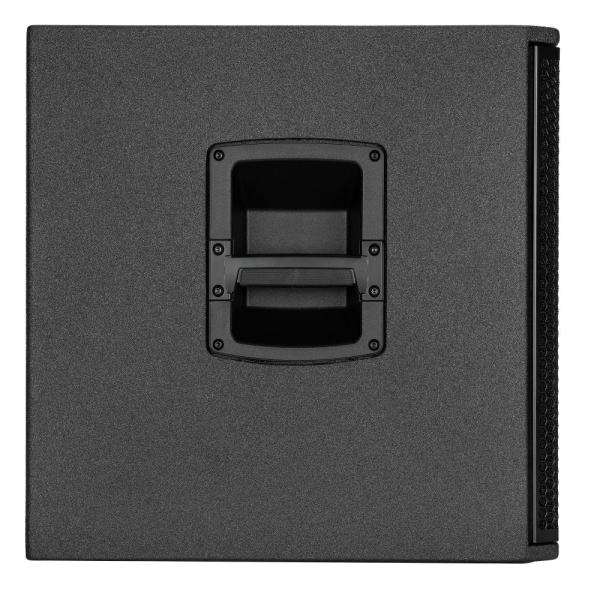

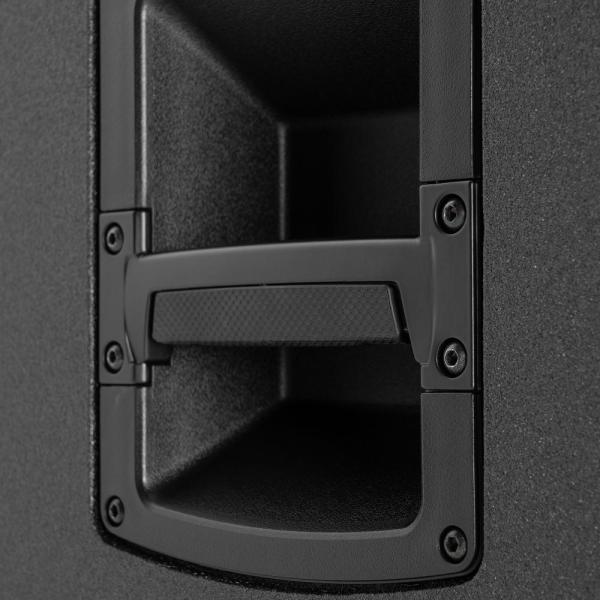

Handles: 1 on each side
Grille: Steel, internal protective foam

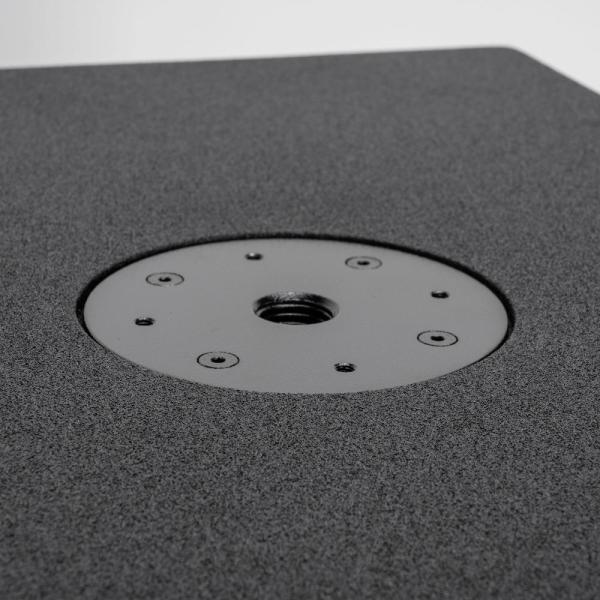

Base: M20 (for pedestal/pole mounting)
Dimensions (H × W × D): 523 × 360 × 515 mm
Weight: 21 kg
Ref. Euroguitar : 120045
