Rcf NX 15-SMA

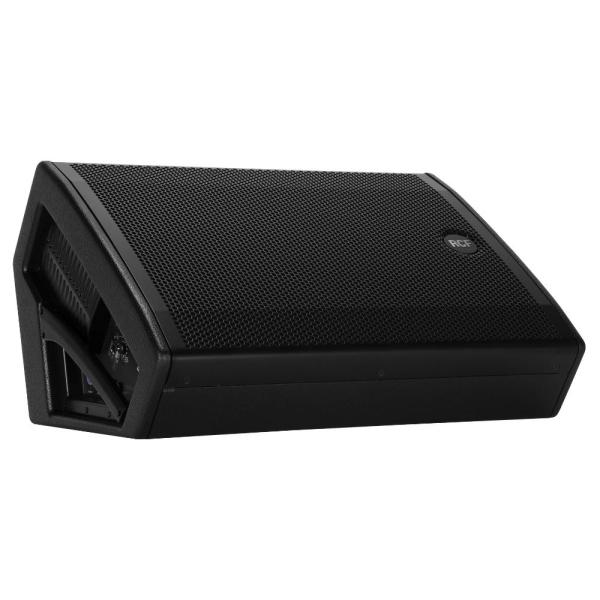

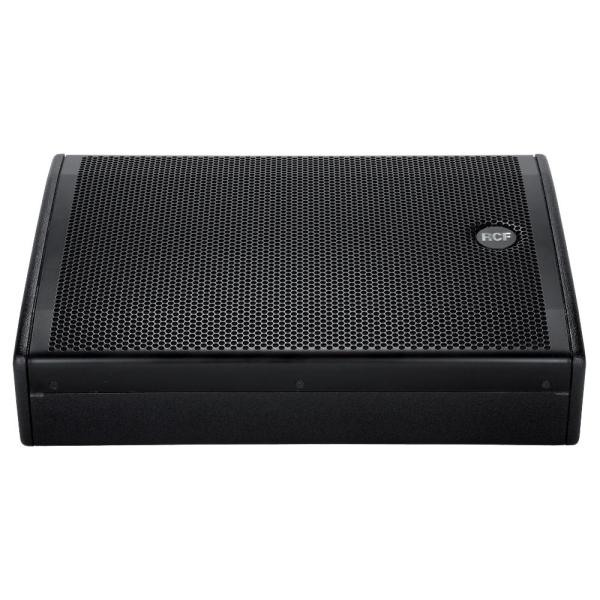

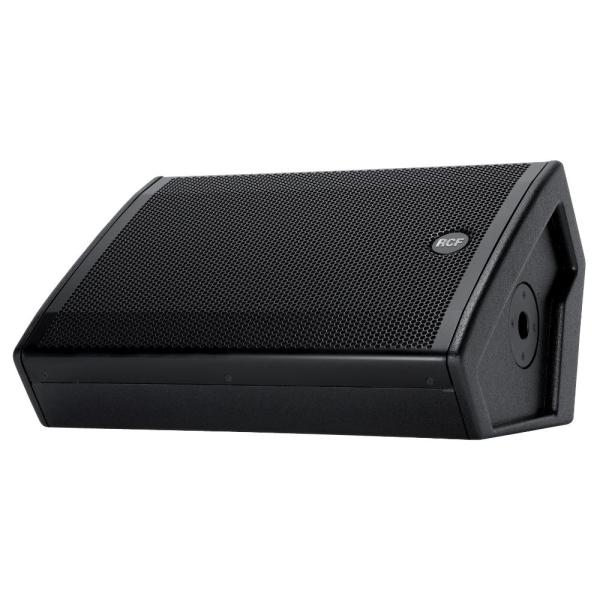

The NX 15-SMA is a coaxial active stage loudspeaker designed to deliver top-level sound performance, whether as a stage monitor or main loudspeaker.

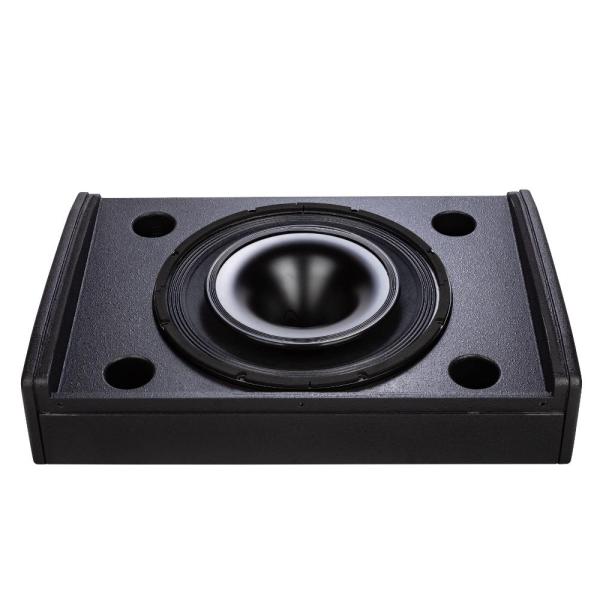

It features a 15? coaxial transducer + optimized neodymium HF motor, and bi-amplified digital amplification. With a controlled 60° x 60° directivity, it ensures even coverage and excellent intelligibility, even in live conditions.

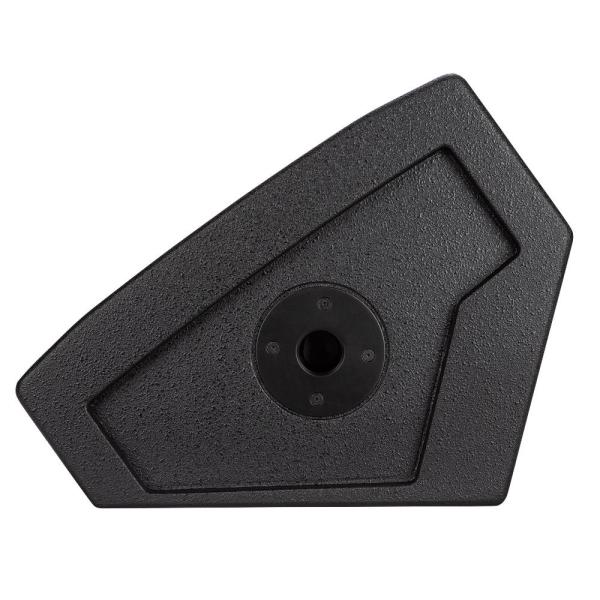

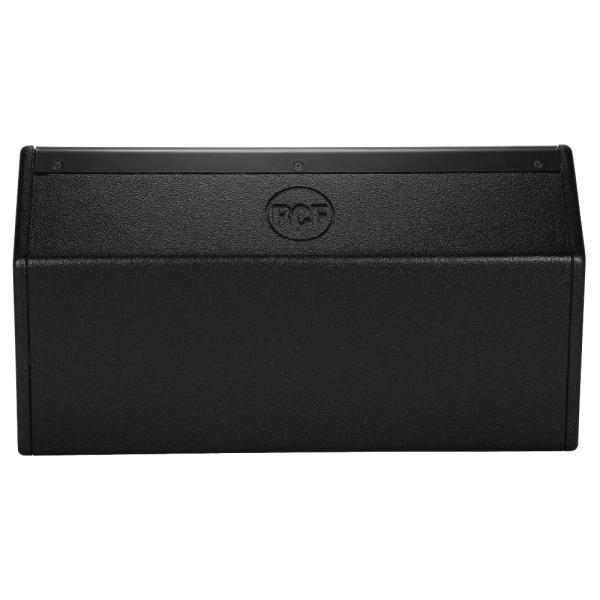

The enclosure is made from Baltic birch plywood, with a highly resistant finish, ergonomic side handle and integrated side stand base, making it highly versatile: floor standing or front-of-house use on a stand.
Two equalization modes are available: Floor (optimized for stage monitoring) and Free Field (optimized for stand-alone PA/front-of-house use).
The NX 15-SMA is designed to be easily transported and set up, while delivering the power and clarity required for live use or mobile installations.
Frequency Response: 50 Hz – 20,000 Hz
Maximum SPL @ 1 m: 130 dB
Coverage Angle (H × V): 60° × 60°
Low-Frequency Driver: 1 × 15? neodymium, 2.5? voice coil
High-Frequency Driver: 1.7? Kapton dome, 1? output, neodymium (coaxial)
Configuration: Two-way coaxial
Amplification / Electronics
Total Power: 700 W RMS / 1,400 W Peak
Distribution:
Low Frequencies: 500 W RMS / 1,000 W Peak
High Frequencies: 200 W RMS / 400 W Peak
Crossover: ~1,700 Hz
Limiter: Soft limiter, RMS & HF protection
Cooling: Convection
Equalization modes: Floor / Free Field

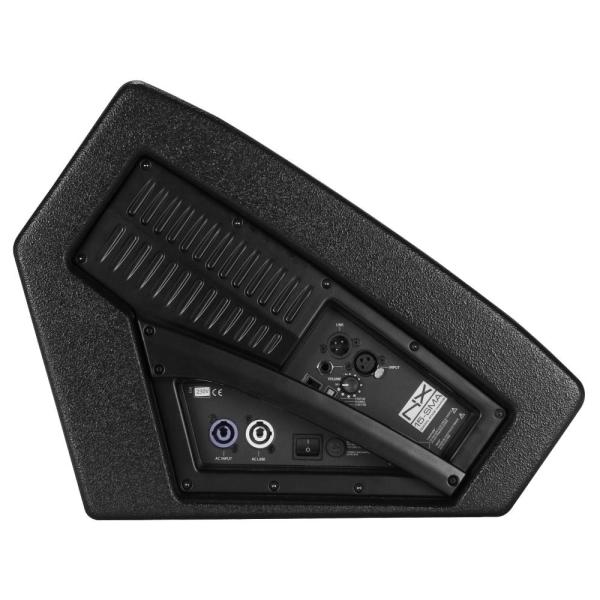

Connectivity
Input: XLR + Jack (balanced/unbalanced)
Output: XLR link
Input sensitivity: +4 dBu
Construction / Mechanics
Cabinet: Baltic birch plywood
Grille: Steel
Handle: Integrated side handle
Stand mount: 35 mm diameter (standard insert)
Finish: Durable black paint
Dimensions (H × W × D): 362 mm × 650 mm × 468 mm
Weight: ? 20.2 kg
Ref. Euroguitar : 120025
