Kodamo Mask1EX MK2
The Kodamo Mask1EX MK2 is a polyphonic desktop digital synthesizer designed and assembled in France, based on proprietary Bitmask synthesis technology. Compact, lightweight, and extremely powerful, it is ideal for both sound designers and live musicians looking for an expressive and innovative instrument.
At the heart of the instrument are two Bitmask digital oscillators per voice, capable of generating up to 512 different waveforms. This unique architecture allows for the creation of a very wide sonic palette, ranging from raw digital textures to more organic and evolving timbres.
The Mask1EX MK2 offers 14-voice polyphony and a multitimbral structure, allowing for the simultaneous playing of multiple layers or parts. It also incorporates an advanced dynamic articulation system (slur, poly-mono, hybrid modes, etc.), which modifies the sonic behavior according to playing style (legato, staccato, intervals), providing an expressiveness rarely found on this type of synthesizer.
Designed for modern sound creation, it features a comprehensive modulation matrix, high-quality built-in effects, and a powerful arpeggiator. Its minimalist interface, based on illuminated buttons and encoders, allows for an intuitive and immediate approach to sound design.
Ultra-portable, it operates via USB-C with very low power consumption (1.5W), enabling use with a power bank, computer, or even a smartphone. Its near-instant startup time (0.5 seconds) makes it an instrument that's always ready to play.
Unique and highly creative Bitmask synthesis technology
Wide sonic palette thanks to 512 waveforms
14-voice polyphony with multitimbrality
Dynamic articulation system for expressive playing
Built-in effects and a comprehensive modulation matrix
Ultra-compact, lightweight, and USB-powered
Instant startup and fast workflow
Made in France with a robust design
Two digital bitmask oscillators generate 512 waveforms (masks) with 9-bit resolution and 8x oversampling per voice
Noise generator with adjustable sample and hold rate
Two multimode filters with resonance: low-pass, band-pass, high-pass, and band-stop
Configurable as 2 x 12 dB/octave or 1 x 24 dB/octave
Two LFOs with 7 waveforms and 16 selectable modulation targets
Four ADSR envelopes (oscillator 1 & 2, noise generator, filter) with loop function
One insert effect per part (maximum 4 insert effects) and one master effect
Available effects: reverb, delay, distortion, bitcrush, ring modulator, chorus, phaser, tremolo, and comb filter
Nine selectable playing modes for extensive performance possibilities: polyphonic with polyportamento, and monophonic with portamento, slur (portamento of adjacent notes), monoportamento, paraphonic, monophonic with note decay, paraphonic slur, mono-retrig and poly-retrig (envelopes are reset with each keystroke), arpeggiator with 26 patterns, Layer/Split mode with 2x2 parts
377 factory presets and storage for 200 user presets

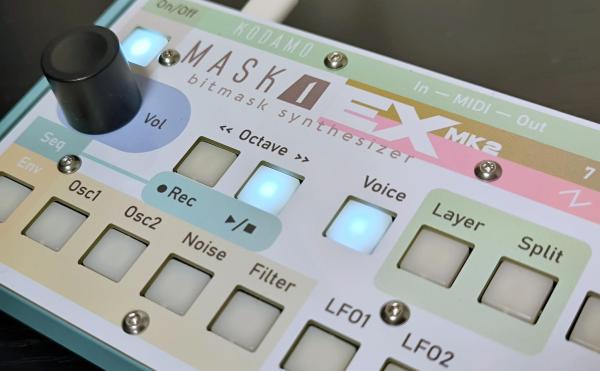

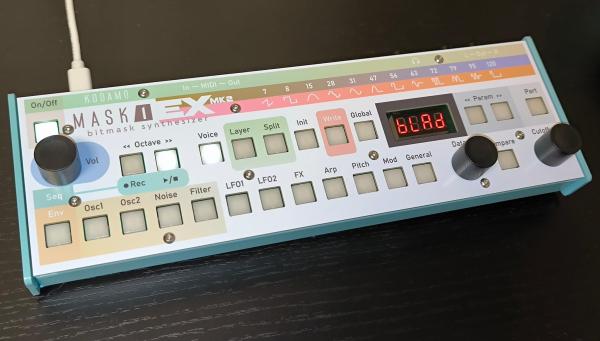

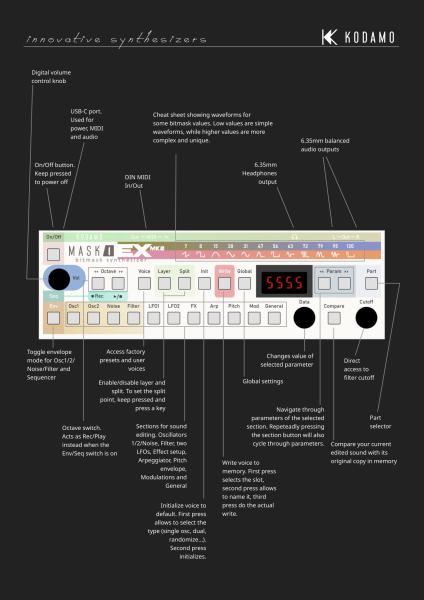

Control via 25 illuminated keys and 3 encoders

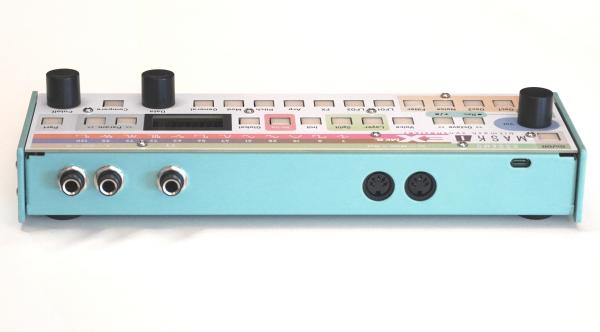

Stereo line output on 2 x 6.3 mm stereo jacks
Headphone output on 6.3 mm stereo jack
MIDI input/output on 5-pin DIN connectors
USB-C port for USB-MIDI and power
Dimensions (W x D x H): 296 x 101 x 56 mm
Weight: 632 g
Power supply and USB-C cable included
