Definitive audio TML 8 BU DSP
SOBRE EL PRODUCTO

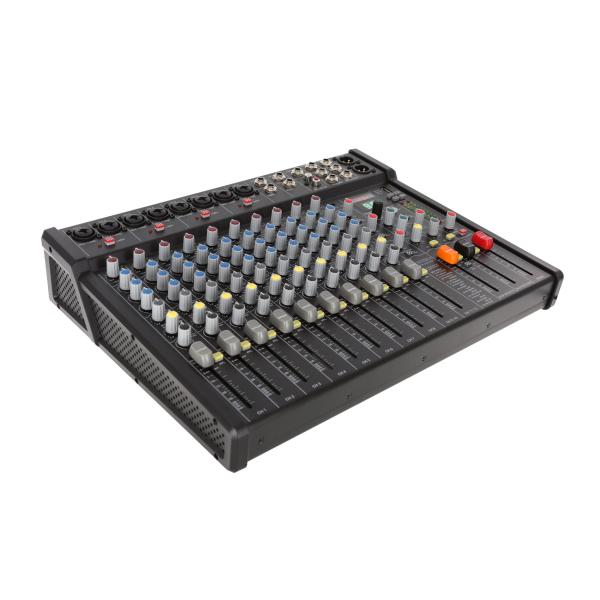

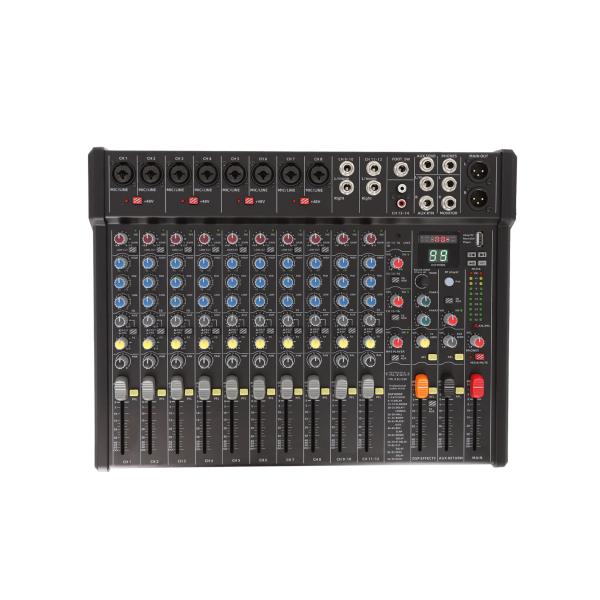

The TML 8 BU DSP is a 16-channel analog mixing console equipped with a 99-effects dsp and USB player/recorder, Bluetooth receiver and XLR balanced outputs.
It features 10 XLR/Jack mic/line combo inputs with 60mm linear faders.
This mixing console is perfect for all kinds of studio and live applications.
CARACTERÍSTICAS
- 16-channel mixer, 8 mono and 4 stereo
- Superior sound quality preamps
- High-quality and precision, fully sealed potentiometers

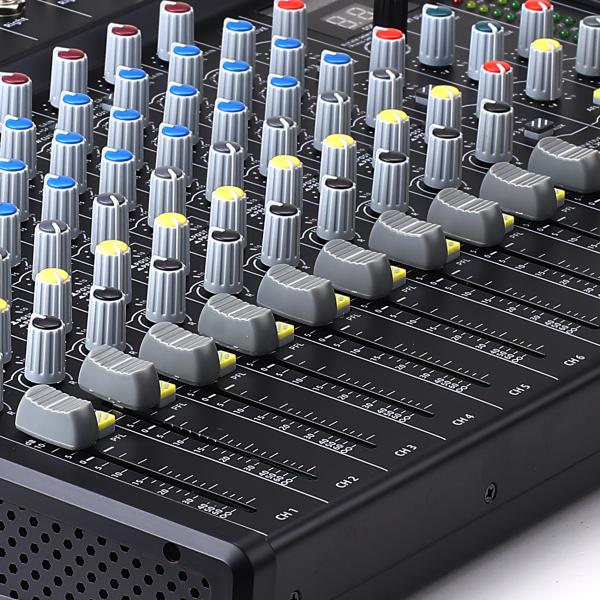

- 10 XLR/Jack combo inputs with 60mm linear faders
- Mic input channels with gain control, signal indicator, 3-band tones, low-cut filter, left and right audio-visual distribution switches, aux and effects send, and monitor control. The XLR inputs have +48V phantom power
- 2 x 6.35mm stereo jack inputs
- 1 x 3.5mm stereo jack input
- 1 x RCA stereo input
- 2 stereo inputs with gain control, signal indicator light, 3-band tone controls, left and right audio and video distribution, aux send, and effects send. The other two stereo inputs feature volume control, signal indicator, and aux send button. - Bluetooth Receiver: V5.1 + BR + EDR + BLE

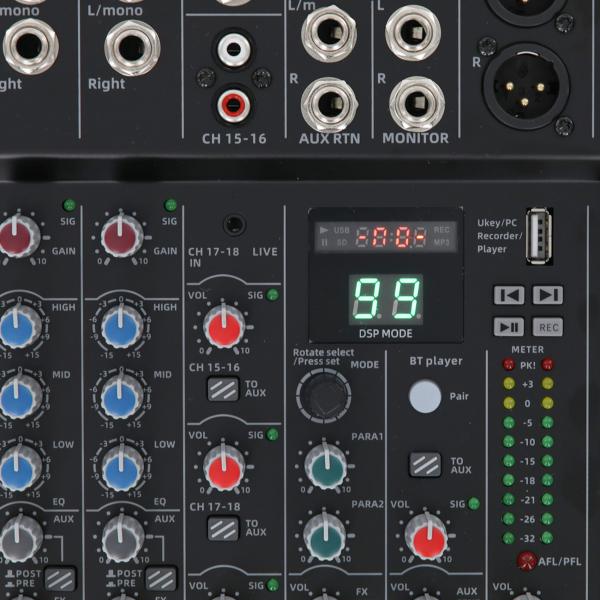

- DSP with LED Display: 99 Effects 24bit/48KHZ

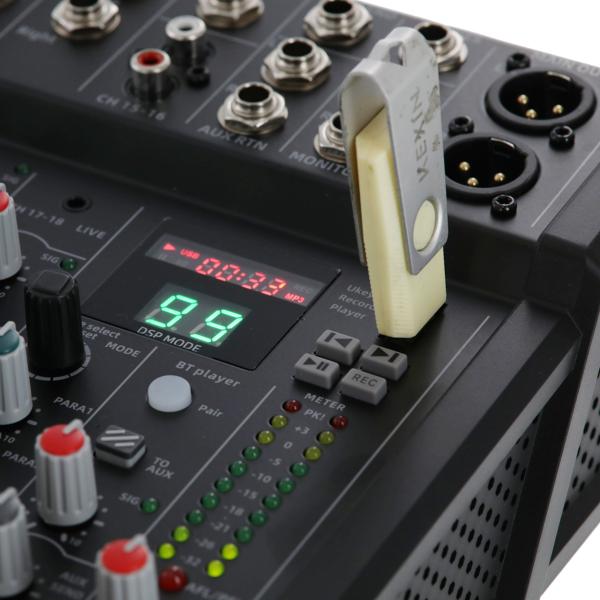

- MP3 Player/Recorder: Audio Decoding: MP3/WAV/APE/FLAC, LED Display, USB 1.1 Audio Interface
- Maximum Input Level: MIC +10dBu / Line +22dBu
- Maximum Output Level: XLR +22dBu, TRS +20dBu
- Main Meters: 6 Segments -20dB Peak
- Channel Meters: 1 LED Signal Indicator
- Accurate Level Display with 3-Color, 10-Band LEDs
- Frequency Response: 20Hz to 22KHz ±1dB;
- CMRR (MIC 1kHz): ?75dB;
- THD+N: <0.05% (mixed channel);
- Mono Channel: Balanced XLR, Pin 2 Hot/Pin 3 Cold, 2K ohm, Sensitivity -60 to +10 dBu
- Phantom Power: +48V
- Balanced TRS, Hot Tip/Cold Ring, 10K ohm, Sensitivity -20 to +20 dBu
- Equalizers: Treble: +/-15dB 12KHz, Mid: +/-15dB 2.5KHz, Bass: +/-15dB 80Hz
- Stereo Channel 1/2: Unbalanced TRS, Hot Tip, 20K ohm, Sensitivity -20 to +20 dBu
- Stereo Channel 1/2: EQ: Treble +/-15dB 12KHz, Mid +/-15dB 2.5KHz, Bass +/-15dB 80Hz
- Stereo Channel 3/4: Unbalanced 6.35mm TRS
- Power Supply : DC 12V/2A 24watts
- Dimensions (L x H x D): 399 x 84 x 309 mm
- Weight: 4.78 kg
- Ref. Euroguitar : 119049
