Cranborne CARNABY 500
SOBRE EL PRODUCTO

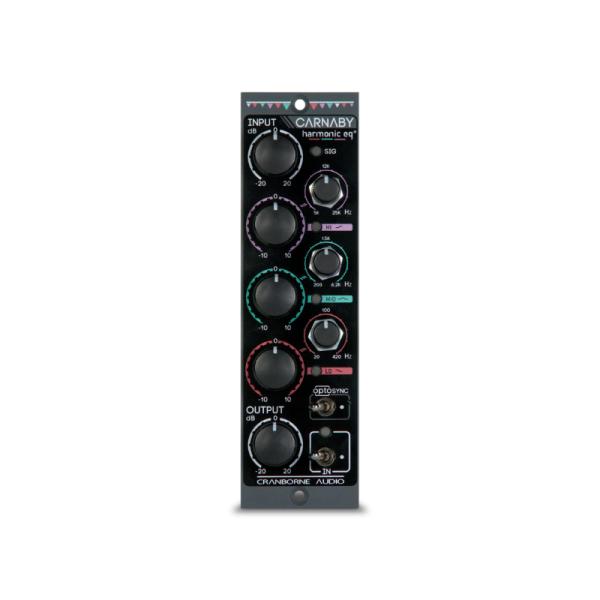

The Cranborne Audio Carnaby 500 marks a world first in the world of analog signal processing. It is the first Harmonic EQ™ analog equalizer in the 500 series format. Unlike traditional equalizers that manipulate the signal via filters, the Carnaby 500 uses harmonic saturation to amplify or attenuate frequencies.
This technology enriches audio sources, stems, and mixes by generating musical harmonics specific to each frequency band, delivering a rich, warm, and highly musical sound. The dynamic approach to equalization makes each adjustment interactive and organic, while maintaining an intuitive parametric EQ-style interface.
CARACTERÍSTICAS
Device Type
3-band parametric equalizer in 500 series format
Exclusive Harmonic EQ™ Technology
EQ Technology
Uses analog harmonic saturation instead of traditional filters
Adds musical harmonics to enrich the sound
EQ Bands
Three independently interactive bands, with ±10 dB boost or cut
Dynamic response: the more the signal is pushed, the more saturation increases
HI Band (Treble)
Adjustable frequencies from 5 kHz to 25 kHz
Soft saturation to add air and clarity
Perfect for vocals, cymbals, strings, and acoustic pianos
MID Band (Midrange)
Bell filter with fixed Q
Adjustable frequencies from 200 Hz to 6.2 kHz
Emphasizes presence or softens the midrange with saturation Targeted
LO Band (Bass)
Adjustable frequencies from 420 Hz to 20 Hz
Hard-clipping saturation
Allows for subtle bass boost or intense subharmonic distortion
Dynamic signal control
Independent input and output potentiometers per band
Level adjustment: ±20 dB
Input gain boost to intensify saturation
Gain reduction for more transparent EQ
Ref. Euroguitar : 116766
3-band parametric equalizer in 500 series format
Exclusive Harmonic EQ™ Technology
EQ Technology
Uses analog harmonic saturation instead of traditional filters
Adds musical harmonics to enrich the sound
EQ Bands
Three independently interactive bands, with ±10 dB boost or cut
Dynamic response: the more the signal is pushed, the more saturation increases
HI Band (Treble)
Adjustable frequencies from 5 kHz to 25 kHz
Soft saturation to add air and clarity
Perfect for vocals, cymbals, strings, and acoustic pianos
MID Band (Midrange)
Bell filter with fixed Q
Adjustable frequencies from 200 Hz to 6.2 kHz
Emphasizes presence or softens the midrange with saturation Targeted
LO Band (Bass)
Adjustable frequencies from 420 Hz to 20 Hz
Hard-clipping saturation
Allows for subtle bass boost or intense subharmonic distortion
Dynamic signal control
Independent input and output potentiometers per band
Level adjustment: ±20 dB
Input gain boost to intensify saturation
Gain reduction for more transparent EQ
Ref. Euroguitar : 116766
