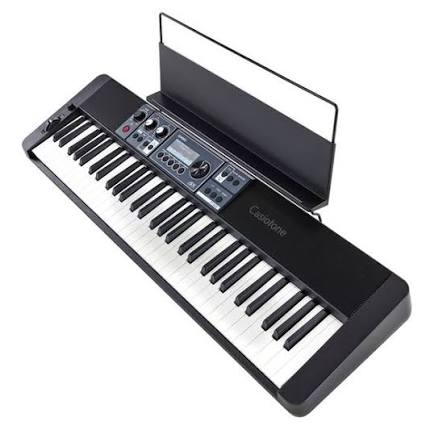

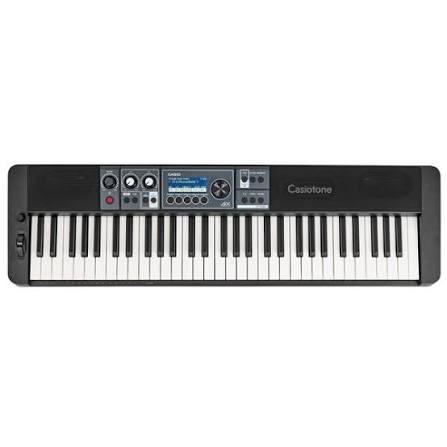

Casio CT-S500
The Casio CT-S500 is a compact, high-performance 61-key arranger keyboard designed for playing at home as well as for rehearsals, composition, and live performances. It combines the portability of the Casiotone series with a particularly rich AiX sound engine, as well as advanced sound control and creation features.
Its 61-key velocity-sensitive keyboard offers three levels of touch response, while its 64-note polyphony allows you to play more complex arrangements with greater fluidity.
The CT-S500 features 800 sounds, including advanced sounds and those from Casio’s legacy, as well as 243 built-in rhythms and up to 50 user rhythms. The Split and Layer functions allow you to split or layer multiple sounds across the keyboard to create more elaborate playing configurations.
One of the CT-S500’s key strengths is its exceptionally comprehensive effects system. It offers 100 DSP effects, as well as reverb, chorus, and delay effects. Parameters can be assigned to the keyboard’s physical controls so they can be adjusted in real time while playing.
The keyboard also includes a sampling function, which allows you to import sounds via the audio input or from a WAV file. This makes it possible to create a custom melodic sound or incorporate your own samples into a drum kit.
For composition and performance, the CT-S500 also features a 150-type arpeggiator, automatic harmonization, a 6-track MIDI recorder, and 64 registrations for storing different configurations of sounds, rhythms, and effects.
Its comprehensive connectivity also makes it an excellent keyboard for use in the studio or on stage. It features independent stereo line outputs, two pedal inputs (one of which is expression pedal-compatible), an audio input, a headphone output, and USB ports.
Bluetooth Audio and MIDI are available via the included WU-BT10 adapter, allowing you to connect a smartphone or tablet. The CT-S500 is also compatible with the CASIO MUSIC SPACE app.
Despite its many features, the keyboard remains easily portable, weighing just 4.7 kg. Its stereo speaker system with Bass Reflex also allows you to play without external amplification.
The Casio CT-S500 is thus a particularly comprehensive solution for musicians looking for a portable arranger keyboard that offers advanced capabilities for creation, sound control, and connectivity.
61 keys
Velocity sensitivity: 3 levels + off
Maximum polyphony: 64 notes
Pitch Bend wheel
Split function
Layer function: 3 parts
Octave shift: -3 to +3 octaves
3 control knobs
Sound engine
AiX Sound Technology
800 tones
243 built-in rhythms
50 user rhythms
Auto-accompaniment
10 user songs
1 demo song
Effects
100 DSP effects
4 DSP chains
Reverb: 24 types + presets
Chorus: 12 types + presets
Delay: 15 types + presets
Master EQ: 10 presets + 1 user setting
Surround function
Volume Sync EQ
Musical functions
Arpeggiator: 150 types
Auto-harmonize: 12 types
One Touch Preset: 243 settings
64 registrations:
16 banks
4 settings per bank
Metronome: 0 to 9 beats
Tempo: 20 to 255 BPM
Tap Tempo
Transpose: -12 to +12 semitones
Tuning: A4 = 415.5 to 465.9 Hz
Equal temperament + 16 variations
Sampling
Import via Audio In or WAV file
Format: 44.1 kHz / 16-bit / stereo
1 melodic sample up to approx. 10 seconds
1 drum sample kit up to approx. 3 seconds
Loop function
MIDI recorder
5 songs
6 tracks
Capacity: approx. 40,000 notes per song

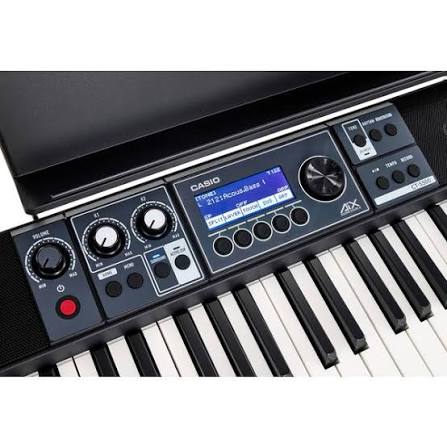

Display
Dot-matrix LCD
White backlight
Navigation dial
Speakers
Two 13 cm speakers x 6 cm
Bass Reflex system
Amplification: 2.5 W + 2.5 W
Surround function

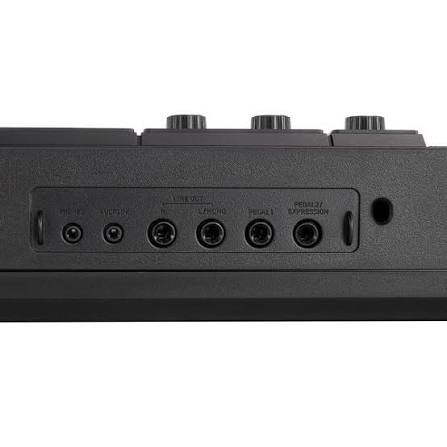

Connectivity
Stereo line outputs:
Left / Mono
Right
USB Type-A
Micro USB Type-B
MIDI via USB
General MIDI Level 1 compatible
Audio input: stereo mini-jack
Headphone output: stereo mini-jack
Pedal 1: standard jack
Pedal 2 / Expression: standard jack
Bluetooth
Bluetooth 5.0
Bluetooth Audio
A2DP profile
SBC codec
Bluetooth MIDI Low Energy
Operates via the included Casio WU-BT10 adapter
Apps
CASIO MUSIC SPACE compatible
Power supply
Casio AD-A12150LW AC adapter – 12 V DC
Operates on 6 AA alkaline or rechargeable Ni-MH batteries
Battery life: approx. 3 hours depending on usage conditions
Power consumption: 7.5 W
Dimensions and weight
Dimensions: 930 x 258 x 91 mm
Weight: 4.7 kg (excluding batteries)
Color
Black
Included accessories
Music stand
AD-A12150LW AC adapter
WU-BT10 Bluetooth Audio/MIDI adapter
Strap lock
