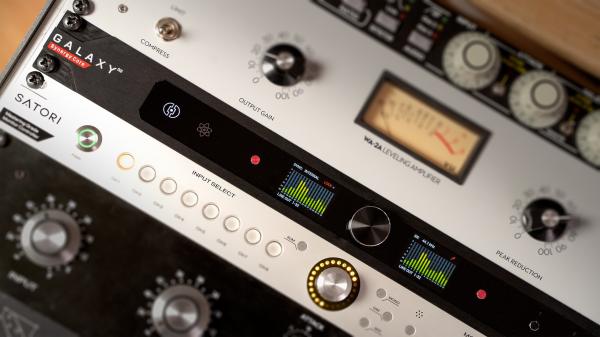

Antelope audio Galaxy 32 Synergy Core
Galaxy 32 Synergy Core is ? multi-channel audio interface and high-end AD/DA converter for professional recording studios and high-profile production facilities. The interface builds upon Antelope Audio’s award-winning Orion 32 line - bringing 32 channels of analog I/O, industry-standard HDX, Thunderbolt and Dante digital connectivity, and Synergy Core processing to a 1U rack-mountable chassis. Along with the comprehensive I/O, the Galaxy 32 Synergy Core features high-resolution conversion and 64-bit AFC™ clocking so your recording system can sound better than ever.
Unrivaled Audio Performance
Experience a new level of detail in your recordings and enjoy wider soundstage for an exceptional stereo image in audio playback. The transparent mastering-grade converters with up to 130dB of headroom and that same 64-bit AFC™ clocking technology from Antelope Audio’s legendary master clocks, go hand in hand to deliver unrivaled audio performance for your entire studio.
Refine your Projects with Synergy Core Processing
The effects coming with Synergy Core are modeled after iconic studio equipment and can be applied in real-time during monitoring, post-production, and live recording. The exclusive compressors, EQs and preamps, are processed with near zero latency entirely inside the interface, putting zero load on your host CPU. The onboard Synergy Core contains the processing power of a complex multi-rack setup which enables you to load up to 128 instances of your favorite signal processors in a single session. Need a console bus compressor on the entire drum kit, or a mastering EQ on your mix bus? You got it.
At any time, you can expand your collection by purchasing more analog-modeled effects such as Grove Hill's Liverpool, and 3rd party effects like Antares’ Auto-Tune.
Seamless Integration, Extensive I/O
The 1U box fits perfectly in high-end audio installations that need to transfer audio over long distance or are simply short on rack space but need to track all audio simultaneously. The versatile interface fuses multiple devices into one by combining a converter, digital patch bay, Dante system and MADI, HDX and Thunderbolt 3 interface.
Dozens of external preamps and signals can be fed in and out of the interface via the eight D-Sub 25 connectors and digital expansion is available through the optical MADI, ADAT, and S/PDIF ports.
Large Sessions and Efficient Workflow
Input and output channels are no longer a scarce resource with the Galaxy 32 Synergy Core. Unlike modular systems, all I/O is available at any time and can be used simultaneously without the need to exchange boards or change setups, making it easy to work on multiple sessions. Thanks to Antelope Audio's unique FPGA programming your HD or HDX rig can now maintain 64 I/O channels in Pro Tools, even at 192kHz.
Features That Make Record-Making Easier
The digital routing of the Galaxy 32 Synergy Core is an entire virtual patch-bay that will help you quickly sort all the channels going in and out of the interface. For maximum ease, a simple drag and drop function and color-coded labeling help you save time during the set-up process. Apart from the intuitive routing, the software control panel allows you to run DAW playback channels through effects, create presets, quickly configure mixes and more.
Connectivity:
32 channels of analog inputs on 4 DSUB-25 connectors with AC/DC coupling switch (TASCAM standard).
32 channels of analog outputs on 4 DSUB-25 connectors with DC coupling (TASCAM standard).
Audio Dante™ over IP with primary/secondary port for long-distance audio transfer.
Two HDX ports: up to 64 channels of I/O for Pro Tools HD/HDX integration.
One Thunderbolt™ 3 port with custom macOS and Windows drivers for native DAWs.
Digital Inputs/Outputs: ADAT, S/PDIF, and 64 channels of optical MADI.
Conversion and Synchronization:
Analog-to-Digital Converter Dynamic Range: 121 dB, Digital-to-Analog Converter Dynamic Range: 128 dB for artifact-free recording sessions.
Mastering-grade monitoring converter with 130 dB dynamic range for critical listening without signal coloration or degradation.
Proprietary Acoustically Focused Clocking technology and 64-bit jitter management algorithm processor providing enhanced width, separation, and detail in musical performances.
Real-Time Plugin Processing:
Collection of 69 analog-modeled Synergy Core plugins.
Integrated Synergy Core real-time processing platform with 12× DSP and 2× FPGA.
Up to 256 plugin instances loaded simultaneously across 64 individual virtual racks.
Workflow Enhancements:
Advanced digital routing matrix allowing complex configurations via drag-and-drop.
8 low-latency 32-channel mixers that can be divided into individual mixes and sub-mixes while applying panning, stereo linking, reverb, or other plugins.
Customizable presets with signal routing, level settings, mixing adjustments, and sub-mixes.
Direct monitoring with real-time plugins without perceptible latency.

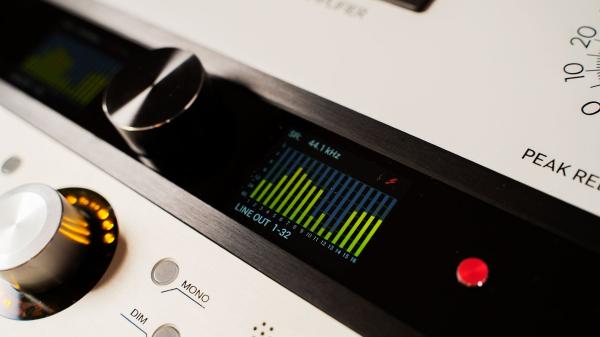

Intuitive touchscreen interface with preset recall.
Serial connection via Thunderbolt™ 3 and USB Type-C remote control.
Ability to work without being connected to a computer (standalone operation).
Wireless control of software features from a separate computer connected to the same network.
Included Built-In Plugins (36 in total, many more available for purchase from the Antelope store):

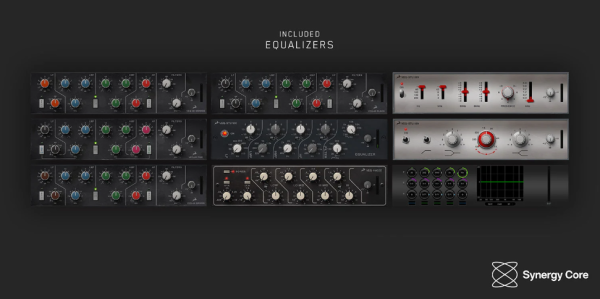

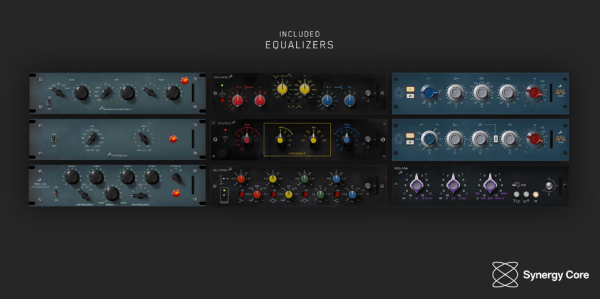

18 equalizers (including BAE-1023, VEQ-STU 089, VEQ-4K BLACK, and more).

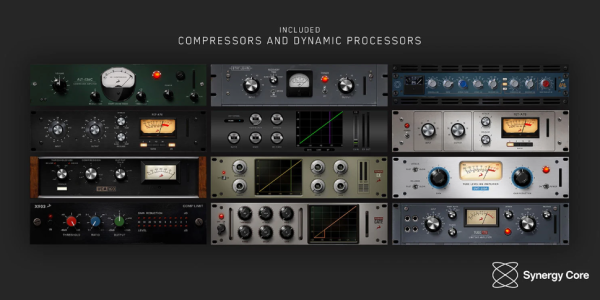

12 compressors and limiters (Stay-Levin, FET-A76, BAE 10DCF, and more).

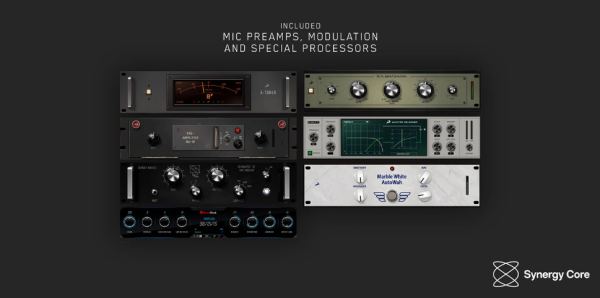

2 preamps BA-31, Gyraf Gyratec IX.
4 special processing plugins (Marble White AutoWah, Vari-Speed Tremolo, Master De-Esser, Auraverb).
Technical Specifications:
A/D LINE INPUT
Input Connection: 8× DC-Coupled D-Sub 25-pin with AC/DC Coupling Switch (TASCAM Standard).
I/O Channel Count: 64 Channels.
Input level trim: 14 dBu to 24 dBu in steps of 1 dB.
Dynamic Range: 121 dB.
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM.
THD+N (A): -112 dB.
Impedance Load: 11.2 kOhms.
D/A LINE OUTPUT
Output Connection: 8× DC-Coupled D-sub 25-pin (TASCAM Standard).
I/O Channel Count: 64 Channels.
Output level: -inf to 24dBu // 1 dB step.
Dynamic Range: 128 dB.
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM.
THD+N (A): -115 dB.
Impedance Load: 56 Ohms.
D/A MONITOR OUTPUT
Output Connection: 2× ¼” 6.35 mm Jack (3 pin).
Channel Count: 2 Channels.
Output level: -inf to 24dBu // 1 dB step.
Dynamic Range: 130 dB.
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM.
THD+N (A): -115 dB.
Impedance Load: 56 Ohms.
HEADPHONE OUTPUT
Output Connection: 1× ¼” 6.35 mm Jack (3 pin).
Output level: 20dBu.
Dynamic Range: 122 dB.
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM.
THD+N (A): -115 dB.
Impedance Load: 120 Ohms.
DIGITAL INTERFACE – THUNDERBOLT™
2× Thunderbolt 3 ports.
64× channels of I/O.
Daisy-chain: supported.
Remote Control: supported (via USB Type-C).
Available sample rates: 44.1 kHz—192 kHz, 24-bit PCM.
Control Panel Support: supported.
DIGITAL INTERFACE - DANTE®
Interface Connection: 2× RJ-45 Ports, I/O.
I/O Channel Count: 64 Channels (@44.1/48.0 kHz).
Redundancy mode supported.
Connectivity: Dual Ethernet, switched or redundant.
Available sample rates: 44.1 kHz—192 kHz, 24-bit PCM.
DIGITAL INTERFACE - HDX
4× HDX "Primary" ports.
128× channels of I/O (32 per port).
Available sample rates: 44.1 kHz—192 kHz, 24-bit PCM.
Delay compensation: supported.
Manual delay compensation: supported (up to 128 samples).
Session I/O Support: yes (16×16).
DIGITAL INTERFACE - MADI
Interface Connection: 2× Optical SC Connectors.
MADI Mode: Dual Wire, Optical.
SMUX: supported.
MADI Protocol: AES10-2003.
I/O Channel Count: 64 Channels @44.1/48.0 kHz.
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM.
DIGITAL INTERFACE - S/PDIF
Interface Connection: 2× RCA Connectors.
S/PDIF SRC: Supported.
I/O Channel Count: 2 Channels.
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM.
DIGITAL INTERFACE - AES/EBU
Interface Connection: 2× XLR Connectors.
AES Mode: AES/EBU.
I/O Channel Count: 2 Channels.
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM.
CLOCKING SYSTEM
Clocking Technology: 4th Generation Acoustically Focused Clocking, 64-Bit Jitter Management DDS.
Word Clock Input: 1× Input @ 75 Ohms 3Vpp on BNC.
Word Clock Output: 6× Output @ 75 Ohms 3Vpp on BNC.
Loop-Sync Input: 1× Input @ 75 Ohms 3Vpp on BNC.
Loop-Sync Output: 1× Output @ 75 Ohms 3Vpp on.
10M Atomic Reference Input: 1× Input @ 75 Ohms 1Vpp on BNC.
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM.
Additional Information:
Operating Temperatures: 0-50°C.
Approximate Dimensions: 482.6 mm x 270 mm x 88.mm.
Weight: 6.4 kg.
Power Consumption: 60 Watts.
System Requirements:
WINDOWS:
PC with USB and Thunderbolt™ 3 ports (backward compatible Thunderbolt™ 2).
OS: Updated Windows 10 x64.
RAM: Minimum 4GB (8GB or more recommended).
CPU: Intel Core i3™ or AMD FX and higher.
MAC:
Apple Mac 2012 or newer with USB and Thunderbolt™ 3 ports (backward compatible Thunderbolt™ 2).
OS: macOS 10.12 (Sierra) or newer - macOS 10.14 (Mojave) recommended.
RAM: Minimum 4GB (8GB or more recommended).
Additional Info:
Internet connection required for software download and product activation.
The provided USB-C cable is for device updates, authorization, and software Control Panel.
Thunderbolt 3 cable (not provided) required for actual operation of the audio interface (audio playback/recording).
In the Box:
Galaxy 64 Synergy Core.
Quick Start Guide.
External power supply.
USB-C Cable (with USB-C/A adapter).
Warranty card.
