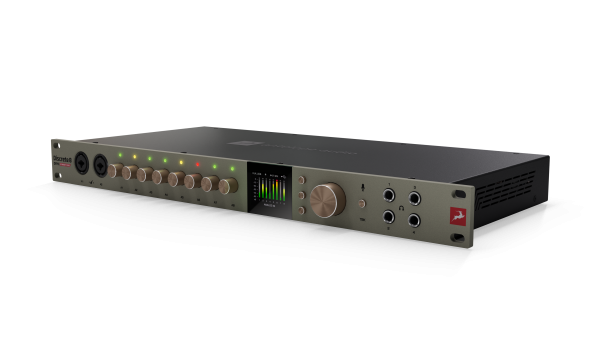

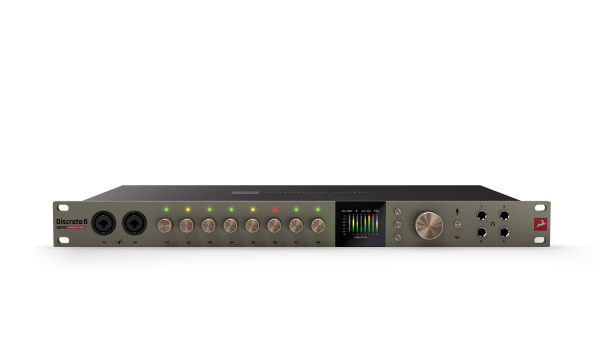

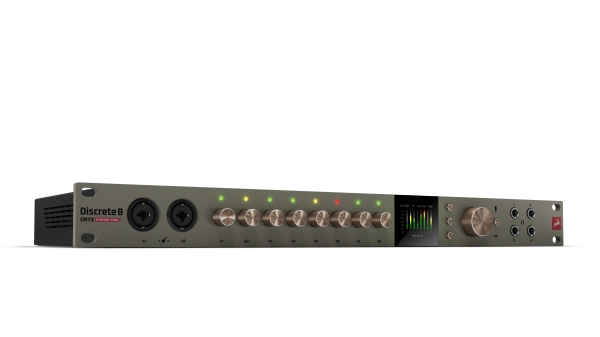

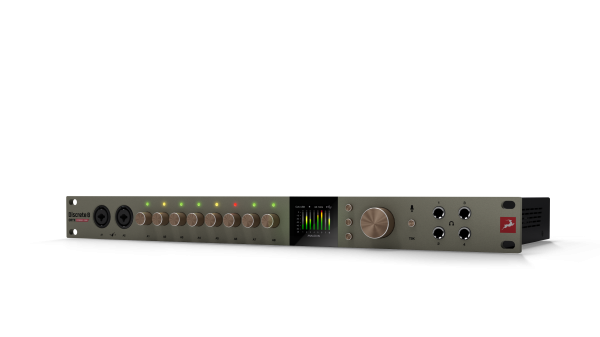

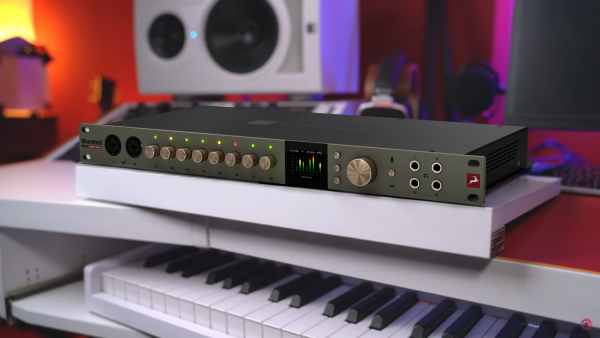

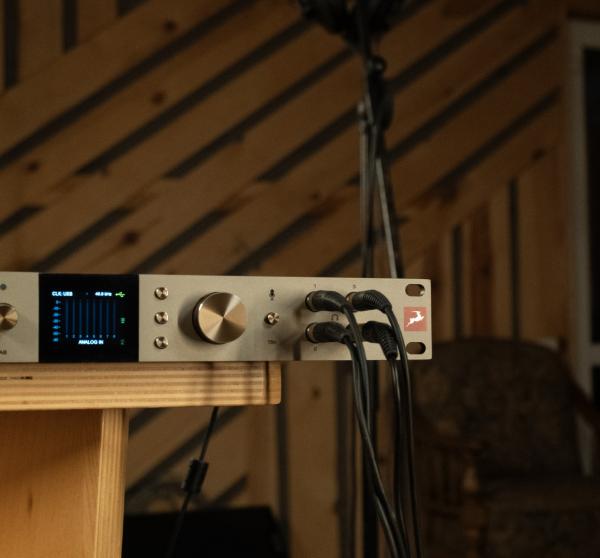

Antelope audio Discrete 8 Oryx
The Discrete 8 Oryx embodies Antelope Audio's expertise in a professional audio interface designed for producers, sound engineers, and bands looking for a complete, high-performance solution.
This model combines high-end audio conversion, discrete preamps inspired by vintage consoles, real-time effects processing, and flexible routing, all in a 1U rackmount format.
Designed for hybrid environments, it allows you to record multiple instruments simultaneously while enjoying impeccable sound quality and a precise, natural monitoring experience.
Key Features
Exceptional Sound Quality: Latest-generation AD/DA conversion offering up to 130 dB of dynamic range, combined with 64-bit AFC™ clocking technology for a wider stereo image and superior definition.
8 High-End Discrete Preamps: Six-transistor design inspired by classic analog consoles, offering up to 75 dB of gain and extremely low self-noise.
Synergy Core Real-Time Processing: Embedded platform combining two DSPs and one FPGA, enabling the use of 37 modeled analog effects (compressors, EQs, amps, reverbs, etc.) with no perceptible latency.
Advanced Monitoring: Four independent headphone outputs with X-feed (crossfeed) mode and custom calibration for precise and realistic monitoring.
Extensive Connectivity: 26 simultaneous inputs and 38 outputs, including ADAT, S/PDIF, Reamp, Line, and Monitor outs, for total studio flexibility.
Full Virtual Routing: Internal patch bay allowing simultaneous use of all analog and digital I/O.
Conversion and Clocking
High-end AD/DA conversion with up to 130 dB of headroom.
Resolution up to 24-bit / 192 kHz.
Proprietary 64-bit AFC™ clock and jitter management algorithm ensure a precise and stable soundstage.
Connectivity

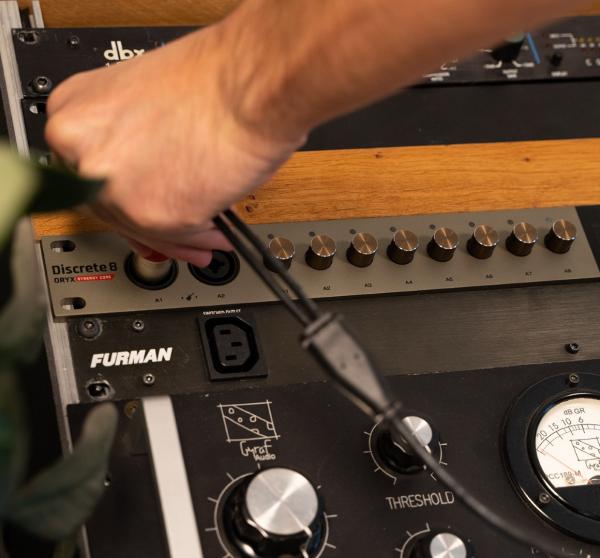

8 discrete preamps (mic/line, including 2 Hi-Z) on XLR combo connectors with +48V power supply.
8 DC-coupled line inputs and 8 outputs via D-Sub 25.
2 ¼” TRS Reamp outputs (can also be used as additional monitor outputs).
4 independent stereo headphone outputs with gain control.
Dedicated TRS stereo monitor outputs.
Digital expansion via ADAT (16 channels) and S/PDIF (2 channels).
3 Word Clock outputs and 1 Word Clock input via BNC.
USB 2.0 Type-C port compatible with macOS and Windows.
Footswitch input for talkback/dim control.
Workflow Features
Direct monitoring with real-time, zero-latency Synergy Core effects.
X-feed mode and integrated headphone calibration.
Customizable headphone mixes (volume, pan, reverb).
Integrated talkback with onboard microphone.

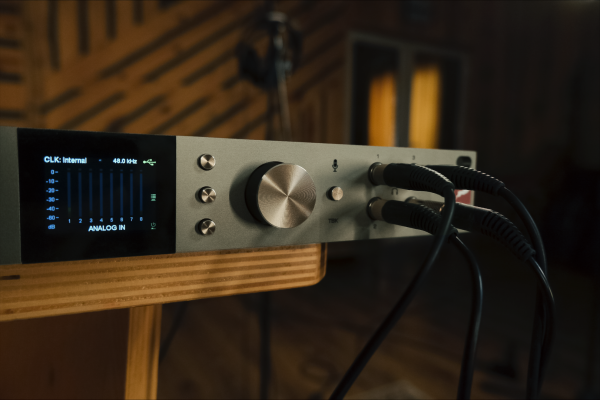

Dedicated hardware controls (color display, navigation buttons, relay gain).
Standalone mode (works without a computer).
Remote control via a another computer on the same network.

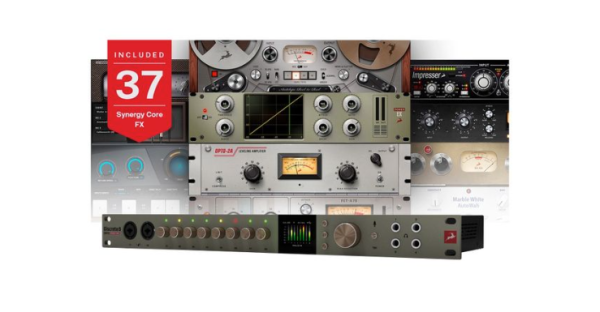

Synergy Core effects included (37 effects)
2 preamps: Gyraf Gyratec IX, BA-31
4 equalizers: VEQ-1A, VMEQ-5, Clear Q, VEQ-HLF
5 compressors/limiters: Stay-Levin, FET-A76, VCA160, X903, PowerFFC
22 guitar amps and cabinets: Bluelux 1x12, Plexi 59, Darkface 65, etc.
2 dynamics processors: Expander, Noise Gate
1 reverb: Auraverb
1 guitar tuner: A-Tuner
6 x Mic/Line
2 x Mic/Line/Hi-Z
DC-coupled
Analog Outputs
1 x TRS Monitor Out (+20 dBu max)
2 x TRS Reamp Out
8 x DB25 Line Out (+20 dBu max)
4 x Stereo Headphone Outputs
Audio Performance
Mic Preamps: EIN -128 dBu (A-weighted), Max Gain 75 dB
ADC: 121 dB DR, THD+N -112 dB
DAC (Monitor): 130 dB DR, THD+N -115 dB
DAC (Line Out): 121 dB DR, THD+N -100 dB
Clock
4th Generation AFC 64-bit DDS
Frequencies: 32 to 192 kHz
Specifications Physical
Dimensions (W × H × D): 483 × 44 × 220 mm
Weight: 3.1 kg (unit) / 4.9 kg (box)
Power Consumption: 25 W
Operating Temperature: 0 to 50 °C
Box Contents
Discrete 8 Oryx Interface
Quick Start Guide
USB-C Cable
USB-C to USB-A Adapter
External Power Supply
Ref. Euroguitar : 119662
