Akg C 114

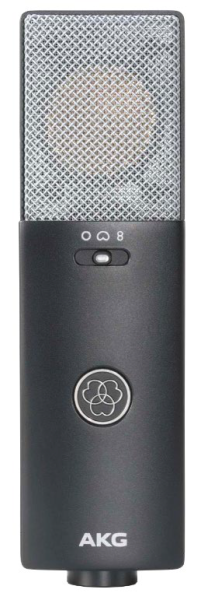

The AKG C114 is a professional, large-diaphragm, multi-pattern condenser microphone designed to deliver exceptional sound quality and maximum versatility. Inspired by AKG’s iconic heritage, including the legendary C12 and C414, it features a 26 mm dual-diaphragm capsule, mounted around the perimeter and plated with gold, ensuring smooth highs and a perfectly balanced frequency response.
With three selectable polar patterns—cardioid, omnidirectional, and figure-eight—the C114 adapts to any recording situation, from studio work to content creation. Its transformerless FET circuitry ensures clear, precise, and uncolored sound reproduction, even at very high volume levels.
Featuring a wide dynamic range, very low self-noise, and the ability to handle up to 145 dB SPL without perceptible distortion, the C114 captures both powerful sources and the most subtle details. True to AKG’s sustainable commitment, it is made from 100% recycled metals and PIR alloys, with fully recyclable packaging.
Pressure Gradient Condenser Microphone
26 mm dual-diaphragm capsule, diaphragm fixed around the perimeter
Gold plating
Pattern Patterns: Cardioid, Omnidirectional, Figure-8
Audio Performance
Frequency Response: 20 Hz – 20 kHz
Sensitivity (Cardioid): 13.5 mV/Pa (-37.4 dBV)
Self-Signal: 12 dB(A) SPL
Signal-to-Noise Ratio: 82 dB (re 1 Pa)
Maximum SPL (0.5% THD): 145 dB
Electrical Characteristics
Electrical Impedance: ? 200 ohms
Recommended Load Impedance: ? 1000 ohms
Phantom Power: 48 V ±4 V (IEC 61938)
Power Consumption ? 5 mA
Connectivity: 3-pin XLR (pin 2 hot)
Dimensions & Weight
Length: 158 mm
Width: 47 mm
Height: 35 mm
Net Weight: 415 g
Recommended Uses
Music Recording
Podcasts and Vlogs
Streaming, Gaming, and Online Conferencing
Broadcasting
Box Contents
AKG C114 Microphone
H84 Shock Mount
Quick Start Guide
Ref. Euroguitar : 120939
