Udo audio DMNO White
The UDO Audio DMNO is a high-end, multitimbral, analog/digital hybrid synthesizer designed for sound creation, sound design, studio production, and performance. It combines the power of two independent internal synthesizers into a single instrument, offering remarkable sonic depth and flexibility—from warm, organic pads to bold, creative textures.
Compact yet highly expressive, the DMNO features a 44-key (FATAR) keyboard with aftertouch: a good compromise between portability and playability, while maintaining a professional level of performance.
It is designed to integrate seamlessly into both a home studio and a more modular environment (modular, DAW, etc.) thanks to its comprehensive connectivity and integrated audio interface.
Type: Hybrid digital/analog synthesizer.
Polyphony: 8 voices.
Binaural Mode: 4 "super-voices" with independent stereo processing.
Multitimbrality: 2 parts (two independent internal synths).
Oscillators:
High-resolution digital oscillators (FPGA).
Classic and complex waveforms.
Functions: Wave morphing, sync, cross-modulation.
Filtering:
Dynamic Multi-Core Stereo VCF analog stereo filter.
Configurations: Series, parallel, or stereo.
Types: Low-pass, high-pass, band-pass, all-pass, phase, comb.
Modulations
Advanced modulation matrix.
Per-part LFO, multi-shape, sync possible.
Multiple envelopes (ADSR), retrigger, loop, inversion.
Assignable aftertouch.

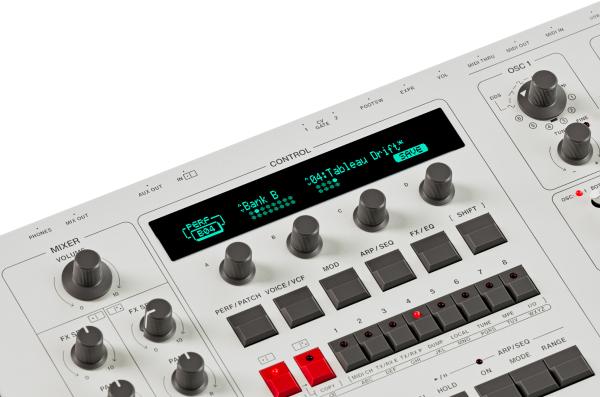

Controls and Playing Modes

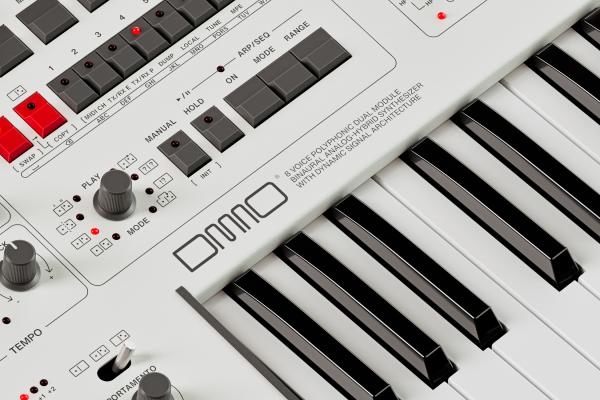

Keyboard: 44-key FATAR keyboard with aftertouch.
8 playing modes: Single, Dual, Split, One-Two, Cycle, Series, Random, Chaos.
Dedicated on-panel controls: no deep menu navigation.
High-visibility VFD (vacuum fluorescent display).
Sequencer and Arpeggiator
Internal 64-step sequencer.
Multimode arpeggiator with intelligent hold.
Built-in Effects
32-bit DSP processing.
Available effects: delay, reverb, chorus, overdrive/distortion, EQ.
Flexible effects chaining.

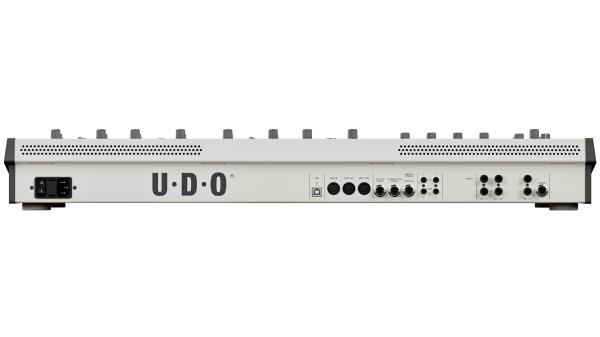

Audio and Connectivity
Built-in USB audio interface: 2 inputs / 2 outputs (24-bit).
Stereo audio input with preamp and envelope follower.
Outputs:
Stereo main outputs.
Assignable auxiliary outputs.
MIDI: DIN In/Out/Thru + USB MIDI.
CV/Gate/Clock connectors for interaction with modular systems.
Pedal inputs: expression, volume, footswitch.
Construction and Dimensions
Format: 44-key compact keyboard.
Dimensions: approx. 780 × 380 × 115 mm.
Weight: approx. 8.5 kg.
Finish: white.
Ref. Euroguitar : 120536
