Boss RC-30
SOBRE EL PRODUCTO

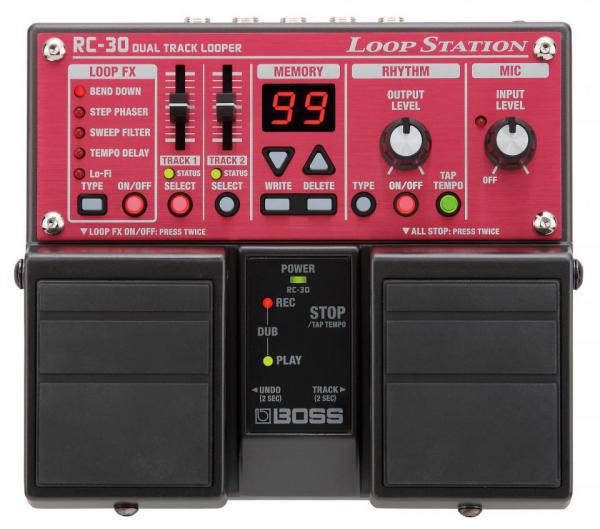

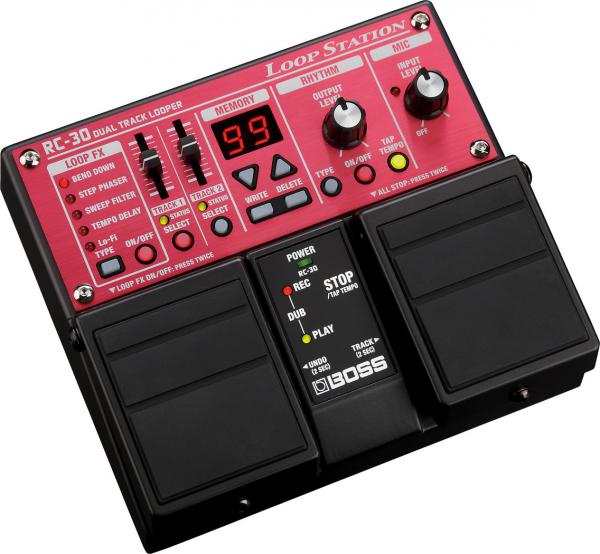

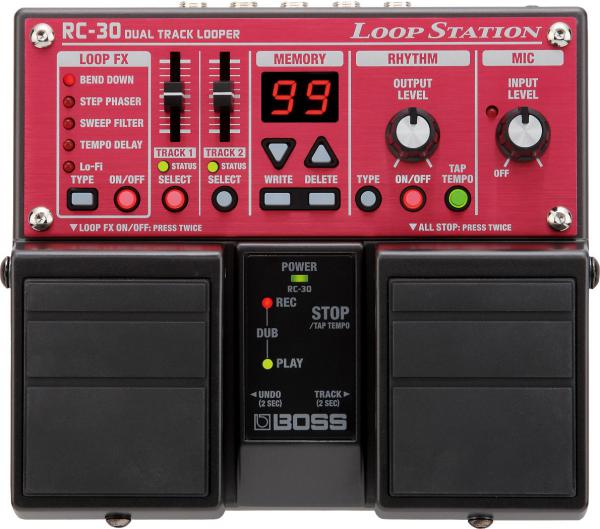

Pedal looper BOSS Rc-30.
CARACTERÍSTICAS
Twin Pedal multitrack looper with true stereo I/O
Two synchronized stereo tracks with dedicated volume faders and track-select buttons
Massive internal memory with up to three hours of stereo recording time
99 onboard memory phrases for storing loops
Built-in effects for processing loops
Multiple inputs: 1/4" A and B input jacks, stereo 1/8" mini AUX input jack, XLR input jack with phantom power
USB 2.0 port allows you to connect to a PC and import/export WAV audio
Rhythm guide with real drums
Runs on batteries or optional AC power supply
Nominal Input Level INPUT: -20 dBu, AUX IN: -10 dBu
Input Impedance INPUT: 1 MΩ, AUX IN: 22 kΩ
Nominal Output Level -20 dBu
Output Impedance 1 kΩ
Recommended Load Impedance 10 kΩ or larger
Recording/Playback Maximum Recording Time: Approximately 3 hours, Maximum Phrase Memory: 99 phrases, Number of tracks: 1, Data Format: WAV (44.1 kHz, 16-bit linear, stereo)
Rhythm Type Hi-Hat, Kick & Hi-Hat, Rock 1, Rock 2, Pop, Funk, Shuffle, R & B, Latin, Percussion
USB Interface Hi-Speed USB mass storage device class
Controls Pedal switch, LOOP OUTPUT knob, RHYTHM OUTPUT knob, DOWN button, UP button, WRITE button, RHYTHM ON/OFF button, TAP TEMPO button
Indicators REC, PLAY (DUB) indicator
Display 7 segments, 2 characters (LED)
Connectors INPUT A Jack: 1/4" phone type, INPUT B Jack: 1/4" phone type, AUX IN Jack: Stereo miniature phone type, OUTPUT A Jack: 1/4" phone type, OUTPUT B Jack: 1/4" phone type, STOP/MEMORY SHIFT Jack: 1/4" TRS phone type, USB Connector, DC IN Jack (DC 9 V)
Power Supply DC 9 V: Alkaline battery (9 V, 6LR61), AC Adaptor (PSA series: sold separately) * Rechargeable Ni-MH batteries cannot be used.
Current Draw 70 mA (DC 9 V) * Expected battery life under continuous use: Alkaline battery (9 V, 6LR61): Approx. 3 hours. These figures will vary depending on the actual conditions of use
Included Accessories Owner’s Manual, Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”), Alkaline battery (9 V, 6LR61): already installed in unit
Dimensiónes 173x158x57 mm
Peso 1.2 kg (including battery)
Ref. Euroguitar : 16713
Two synchronized stereo tracks with dedicated volume faders and track-select buttons
Massive internal memory with up to three hours of stereo recording time
99 onboard memory phrases for storing loops
Built-in effects for processing loops
Multiple inputs: 1/4" A and B input jacks, stereo 1/8" mini AUX input jack, XLR input jack with phantom power
USB 2.0 port allows you to connect to a PC and import/export WAV audio
Rhythm guide with real drums
Runs on batteries or optional AC power supply
Nominal Input Level INPUT: -20 dBu, AUX IN: -10 dBu
Input Impedance INPUT: 1 MΩ, AUX IN: 22 kΩ
Nominal Output Level -20 dBu
Output Impedance 1 kΩ
Recommended Load Impedance 10 kΩ or larger
Recording/Playback Maximum Recording Time: Approximately 3 hours, Maximum Phrase Memory: 99 phrases, Number of tracks: 1, Data Format: WAV (44.1 kHz, 16-bit linear, stereo)
Rhythm Type Hi-Hat, Kick & Hi-Hat, Rock 1, Rock 2, Pop, Funk, Shuffle, R & B, Latin, Percussion
USB Interface Hi-Speed USB mass storage device class
Controls Pedal switch, LOOP OUTPUT knob, RHYTHM OUTPUT knob, DOWN button, UP button, WRITE button, RHYTHM ON/OFF button, TAP TEMPO button
Indicators REC, PLAY (DUB) indicator
Display 7 segments, 2 characters (LED)
Connectors INPUT A Jack: 1/4" phone type, INPUT B Jack: 1/4" phone type, AUX IN Jack: Stereo miniature phone type, OUTPUT A Jack: 1/4" phone type, OUTPUT B Jack: 1/4" phone type, STOP/MEMORY SHIFT Jack: 1/4" TRS phone type, USB Connector, DC IN Jack (DC 9 V)
Power Supply DC 9 V: Alkaline battery (9 V, 6LR61), AC Adaptor (PSA series: sold separately) * Rechargeable Ni-MH batteries cannot be used.
Current Draw 70 mA (DC 9 V) * Expected battery life under continuous use: Alkaline battery (9 V, 6LR61): Approx. 3 hours. These figures will vary depending on the actual conditions of use
Included Accessories Owner’s Manual, Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”), Alkaline battery (9 V, 6LR61): already installed in unit
Dimensiónes 173x158x57 mm
Peso 1.2 kg (including battery)
Ref. Euroguitar : 16713
