Zoom R8
ese artículo ya no está disponible a la venta
SOBRE EL PRODUCTO

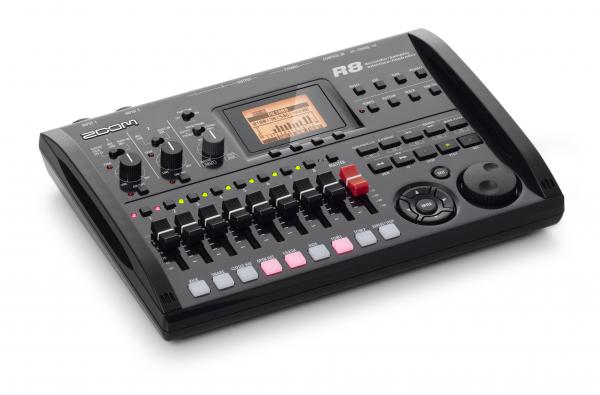

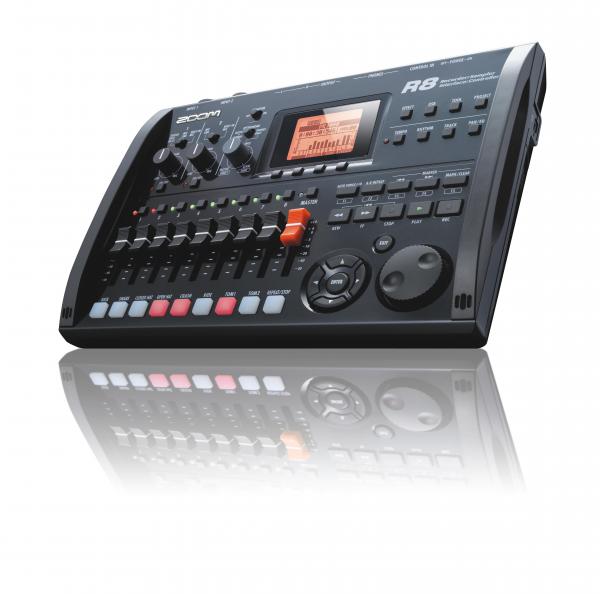

The Zoom R8 combines multiple audio production tools in one compact device. In addition to being an 8-track recorder, it's a pad sampler and a rhythm machine, and can even serve as a DAW control surface and computer audio interface.
Advanced features such as built-in stereo condenser microphones, dual mic/line/instrument level inputs, onboard DSP effects and chromatic tuner complete the picture, making the R8 a great choice for home recordists and road warriors alike.
CARACTERÍSTICAS
Recorder
- Track count: 8 (mono)
- Maximum number of simultaneous recording tracks: 2
- Maximum number of simultaneous playback tracks: 8 audio + metronome
- Recording data format: 44.1 / 48 kHz, 16 / 24-bit WAV format
- Maximum recording time: 200 minutes/1 GB (44.1 kHz 16-bit, mono tracks)
- Projects: 1000
- Markers: 100/project
- Locator: Hours/minutes/seconds/milliseconds and bars/beats/ticks
- File editing: Divide, trim
- Track parameters: 3-band equalizer, pan (balance), effect send ×2, invert
- Stereo link: Tracks 1 / 2 ~ 7 / 8 selectable in pairs
- Other functions: Punch-in/out (manual, auto), Bounce, A-B repeat, Undo/Redo
Effects
- Algorithms: 8 (CLEAN, DISTORTION, ACO/BASS SIM, BASS, MIC, DUAL MIC, STEREO, MASTERING)
- Patches: 310 insert, 60 send-return
- Effect modules: 7 insert , 2 send
Tuner
- Type: Chromatic, guitar, bass, open A/D/E/G, D modal
Rhythm
- Voices: 8
- Format: 16-bit linear PCM
- Drum kits: 10
- Precision: 48 PPQN
- Rhythm patterns: 511/project
- Tempo: 40.0 ~ 250.0 BPM
Sampler
- Playback formats: 44.1 / 48 kHz, 16 / 24-bit WAV files
- Editing functions: Trim, time-stretch
Hardware
- Recording media: SD card (16MB - 2 GB), SDHC card (4 - 32 GB)
- Analog-digital conversion: 96kHz 24-bit delta-sigma ADC
- Digital-analog conversion: 96kHz 24-bit delta-sigma DAC
- Display: 128 x 64 pixel LCD (with backlight)
Inputs:
Input 1-8
- Type: 8 XLR/TRS combo jacks
- Input impedance: (Balanced input) 1KΩ balanced (2 hot), (Unbalanced input) 50 KΩ unbalanced (1 with Hi-Z input impedance 470 kΩ (Hi-Z on), 2 with phantom power)
- Phantom Power: 48V, 24V
- Input level: -50 dBm < continuous < +4 dBm
Built-in stereo microphones
- Type: Omnidirectional condenser microphones
- Gain: -50 dBm < continuous < +4 dBm

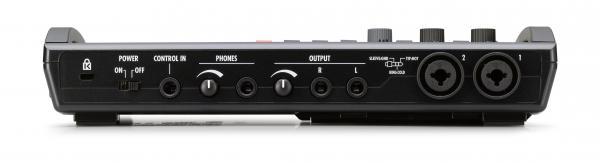

Outputs:
Output
- Type: TRS phone (balanced)
- Phones: Standard stereo phone jack 20 mW x 2 (32 Ω load)
- Mixer faders: 9 (mono × 8, master × 1)
- Pads: 8 (velocity-sensitive)
- S/N ratio: 93 dB
Control input:
- FS01
- USB
- Mini-B type (USB 2.0): Operation as audio interface/control surface and mass storage
USB audio interface
- Number of recording channels: 2
- Number of playback channels: 2
- Bit rate: 24
- Sampling frequency: 44.1, 48, 88.2, 96 kHz
Compatibility:
- Windows® XP SP3 or later (32-bit)
- Windows® Vista SP1 or later (32-bit, 64-bit)
- Windows® 7 (32-bit, 64-bit)
32-bit: Intel® Pentium® 4 1.8 GHz or faster, RAM 1 GB or more
64-bit: Intel® Pentium® Dual Core 2.7 GHz or faster, RAM 2 GB or more
- Mac OS X 10.5/10.6/10.7/10.8/10.9/10.10/10.11
with Intel® Core Duo 1.83 GHz or faster and RAM 1 GB or more
USB 2.0 compatible port, Intel chipsets recommended
Power
- AC adapter: DC 5V 1A (ZOOM AD-17)
- Batteries: 4 AA batteries (5.5-hour continuous operation time with backlight on and phantom power off)
Other
- Dimensions: 257 mm (W) × 190 mm (D) × 51 mm (H)
- Weight: 780 g
Ref. Euroguitar : 18008
