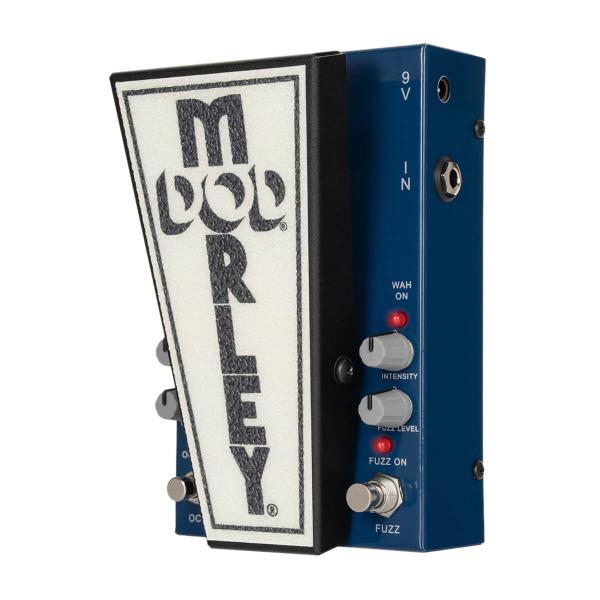

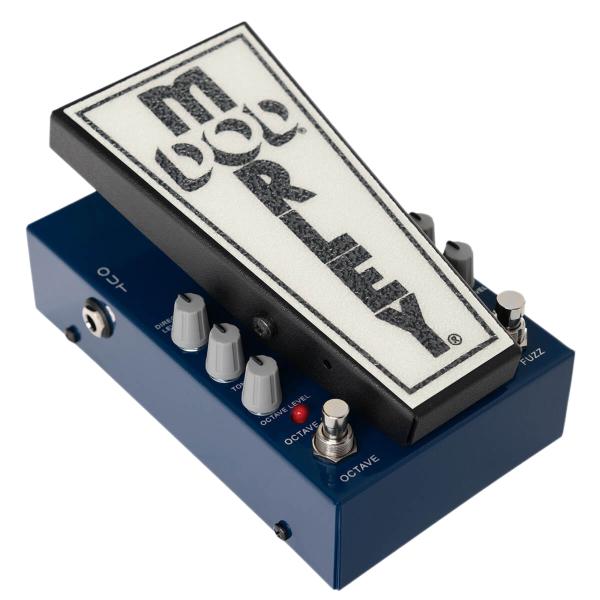

Dod Wah-Octo-Fuzz
This project is the result of a collaboration that combines the legendary “Morley Wah” and its classic 1970s fuzz circuit with the octave circuit of the highly acclaimed DOD FX35 Octoplus.
The Wah-ocTo-Fuzz is the ultimate tool, designed to spark the creativity of guitarists, bassists, and keyboardists.
Independent control: Each effect has its own pedal and LED indicator, allowing you to activate them separately or all at once.
Switchless operation: simply press the pedal to activate the Wah.
High-end Morley buffer circuit: protects your sound from any interference in your signal chain.
Professional construction: features an ultra-durable cold-rolled steel housing for maximum durability on stage.
Compatible with guitar, bass, or even keyboards.
- Input: 6.35 mm (¼ in.) instrument jack
- Input impedance: >500 kΩ
- Output: 6.35 mm (¼ in.)
- Output impedance: <1 kΩ
- Enclosure: Cold-rolled steel
- Power input: 2.1 mm DC connector (barrel type), center negative (tip)
- Power supply: PS0913DC power supply, other regulated 9 V power supply (center negative), +18 V compatible, 9 V alkaline battery
- Current draw: 30 mA (typical)
- Controls: Direct Level, Tone, Intensity, Fuzz Level, Octave Level
- Ref. Euroguitar : 124432
