Definitive audio INEAR PLUG UHF 100
SOBRE EL PRODUCTO
The INEAR PLUG UHF 100 is a compact wireless in-ear monitoring system consisting of an audio transmitter and a rechargeable belt-mounted receiver. It operates in the UHF band at frequencies ranging from 500 to 699 MHz and allows musicians, singers, or technicians to listen to their monitor audio in real time, without being connected to the mixing console by a cable. It features 20 preset frequencies with automatic pairing, a range of up to 50 meters, and a battery life of approximately 6 to 8 hours.
CARACTERÍSTICAS
- Wireless UHF in-ear monitoring system

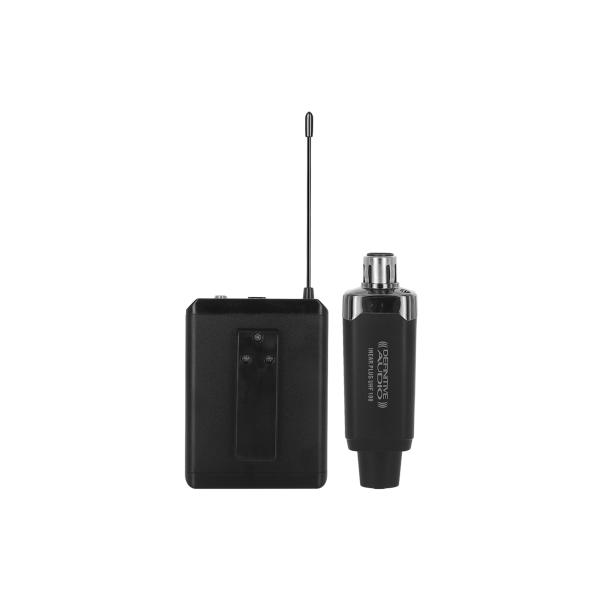

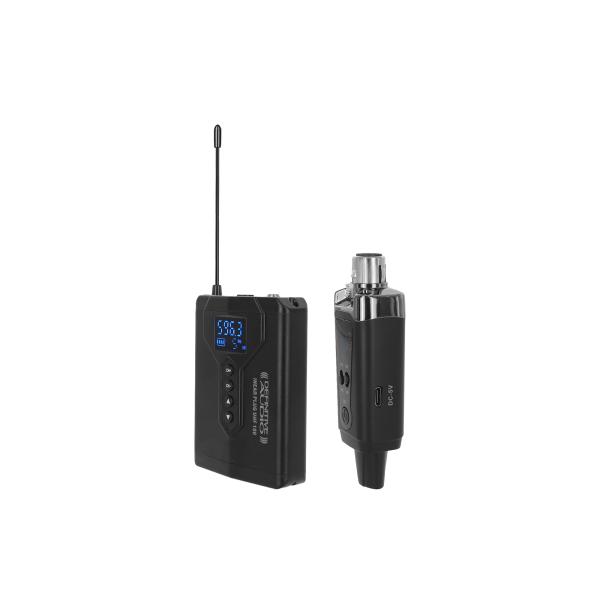

- Consists of an audio transmitter and a compact belt-pack receiver
- Stable UHF transmission
- Frequency range: 500–699 MHz
- Number of adjustable channels: 20 preset frequencies
- Frequency response: 75 Hz – 18 kHz
- Signal-to-noise ratio: > 98 dB
- Total harmonic distortion: < 1% @ 1 kHz
- RF carrier power: 25 mW
- Automatic pairing
- Operating range: up to 50 m
- Modulation mode: DQPSK

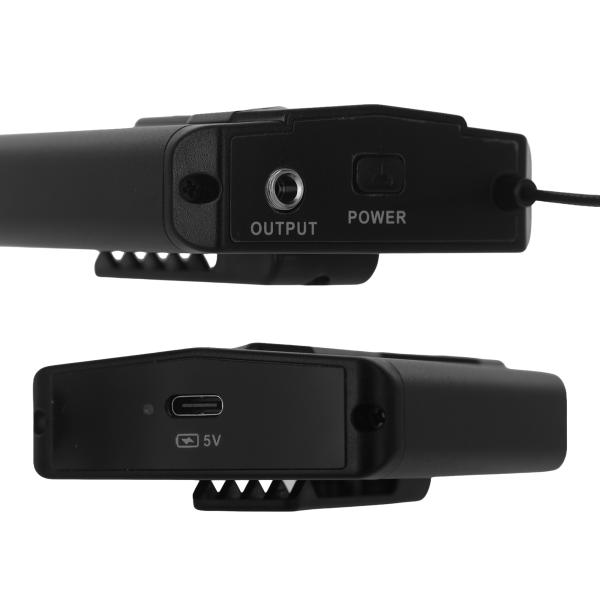

- Headphone/earphone output
- Compact belt-mounted receiver: 87 × 62 × 21 mm
- Built-in rechargeable lithium battery
- Transmitter battery: 3.7 V / 1000 mAh
- Receiver battery: 800 mAh
- Battery life: 6 to 8 hours
- DC 5V charging port
- Ref. Euroguitar : 126153
