Definitive audio DA UHF 100 GUITARE
SOBRE EL PRODUCTO

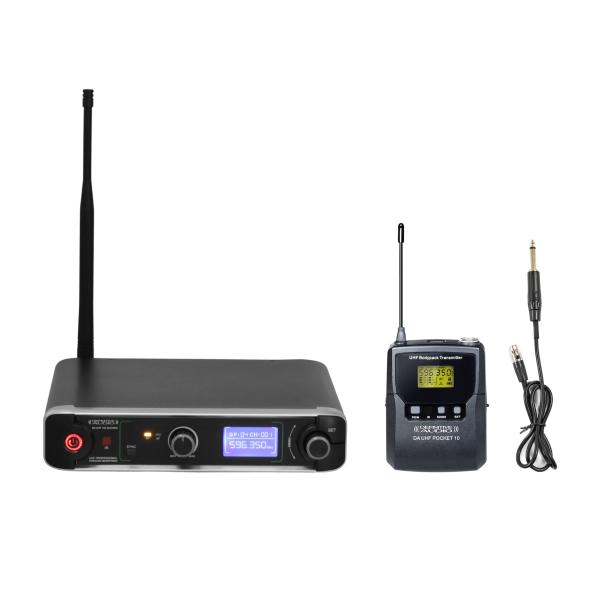

The DA UHF 100 GUITARE is a professional UHF wireless system specially designed for guitarists and bassists who want to maintain optimum signal quality without the need for cables.
Thanks to its stable UHF PLL band and compact beltpack transmitter, this system offers reliable, dynamic, interference-free transmission.
CARACTERÍSTICAS
Main Features:
- UHF band, PLL phase-locked circuit, stable characteristics, low harmonic radiation.
- Frequency group design; several preset groups are compatible with the operating frequency.
- Tuning bandwidth up to 50 MHz for up to 2000 switchable frequencies (depending on the region).
- Large LCD display.
- 1U chassis with rack-mounting kit.
- One separate antenna for improved reception.

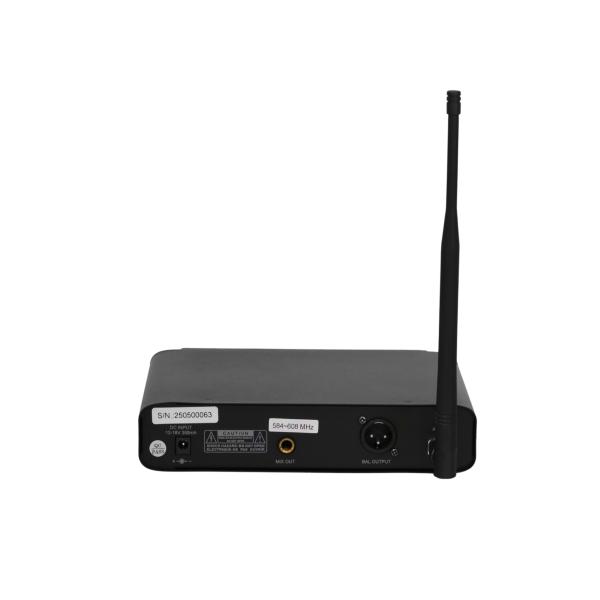

- Independent balanced XLR outputs.
- Balanced Mix Out jack output.
- ACT function: wireless transmitter synchronization is performed via the infrared interface.
- Frequency response range of 50 Hz to 16 kHz with a flat frequency response.

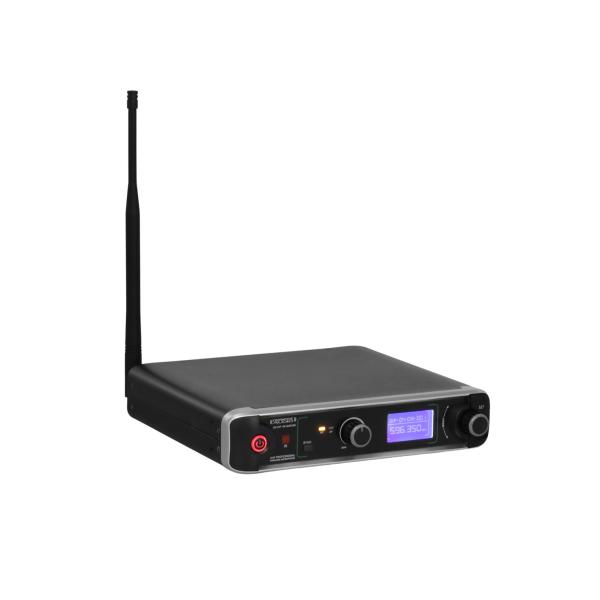

Receiver Technical Specifications:
- Reception Channel: Single channel
- Oscillation Mode: Phase-locked PLL Frequency Synthesis
- Modulation Mode: FM Modulation
- RF Sensitivity: 6dB V input, S/N > 80dB
- Operating Range: 60 m linear distance. Caution: Actual range depends on RF signal absorption, reflection, and interference, as well as the environment in which the microphone is used.
- Silent control mode: audio code and noise lock
- Built-in frequency response: 50Hz to 18kHz (±3dB)
- Built-in THD: <0.5% at 1kHz
- Panel display: LCD + LED
- Includes a guitar jack cable (6.35mm jack to 4-pin mini-XLR)
- Dimensions (mm): 210 (W) x 44 (H) x 181 (D)
- Weight: 0.8 kg

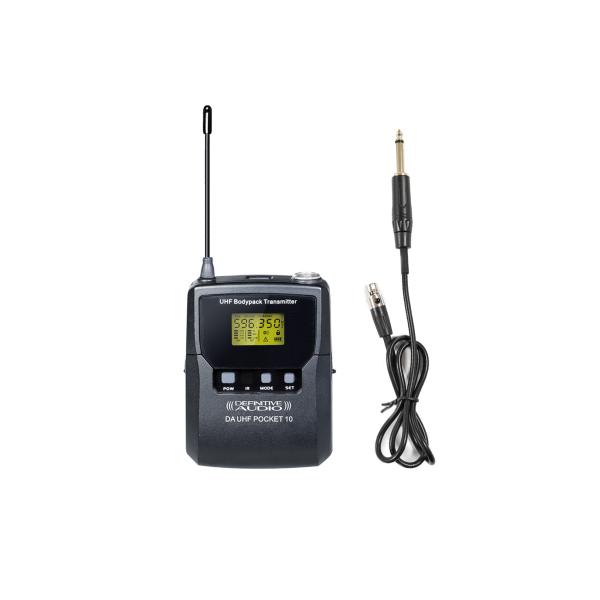

Bodypack transmitter:
- Input connector: 4-pin mini-XLR
- Backlit LCD display: frequency, group, status
- Transmit power: max. 30 mW (depending on region)
- Compatible microphone type: externally polarized dynamic or electret
- Power supply: 2 AA batteries
- Battery life: approximately 8 hours
- Dimensions: 66 x 106 x 23 mm
Ref. Euroguitar : 122817
